Mfr Part #:

TSW-105-05-L-D

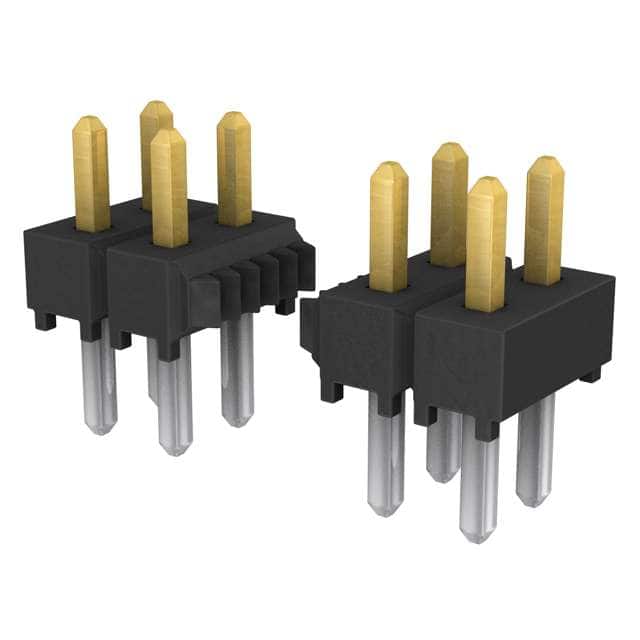

Connector Header, 10 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole, unshrouded, solder termination, with 10µin Gold/Tin contact finish.

✓ Total Stock: 91 pcs

$ Price Range: $0.54 - $1.09

TSW-105-05-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	91 pcs On Request	91 pcs	On Request	1	On Request	On Request	16+	On Request	On Request

TSW-105-05-L-D Description

Short technical summary and product information.

The Samtec TSW-105-05-L-D is a 10-position, 2-row through-hole header from the TSW series, featuring a 0.100" (2.54mm) pitch. It has a vertical orientation with unshrouded square posts measuring 0.025" (0.635mm) and a post length of 0.105" (2.667mm). The overall contact length is 0.335" (8.51mm).

Contact material is phosphor bronze with a contact finish of 10µin Gold on the mating area and Tin on the tails. The insulator is black PBT rated UL94 V-0, with an insulation height of 0.100" (2.54mm). The operating temperature range is -55°C to 125°C.

This header is designed for board-to-board or cable applications and is supplied in bulk packaging. It mates with Samtec socket strips such as the SSW, BCS, CES, ESQ, and ESW series.

TSW-105-05-L-D Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-105-05-L-D 10-Position 2-Row .100" Pitch Through-Hole Unshrouded Header

Subcategory: Unshrouded

TSW-105-05-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-105-05-L-D Estimated Pricing

Qty	Low	High
1+	$1.09	$1.09
50+	$0.94	$0.94
100+	$0.83	$0.83
500+	$0.78	$0.78
1,000+	$0.66	$0.66
2,000+	$0.62	$0.62
5,000+	$0.57	$0.57
10,000+	$0.54	$0.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-105-05-L-D Features

10 positions in 2 rows with 2.54mm pitch.
Through-hole mounting with solder termination.
10µin Gold on contact, Tin on tails.
Square post 0.025" (0.635mm) for reliable connection.
Operating temperature range -55°C to 125°C.

TSW-105-05-L-D Applications

Ideal for board-to-board interconnections.
Used in cable-to-board applications.
Suitable for high-density packaging designs.
Compatible with standard .100" pitch socket strips.

TSW-105-05-L-D FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-105-05-L-D have?

It has 10 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What mounting type does this connector use?

It uses through-hole mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact finish on this header?

The contact finish is 10µin Gold on the contact area and Tin on the tails.

What insulation material is used?

The insulation material is Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold/Tin
Contact Finish Thickness	10.0 µin (0.25 µm)
Contact Length	3.30mm (0.130")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Straight
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Orientation	Vertical
Overall Contact Length	0.335" (8.51mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Termination Style	Solder
