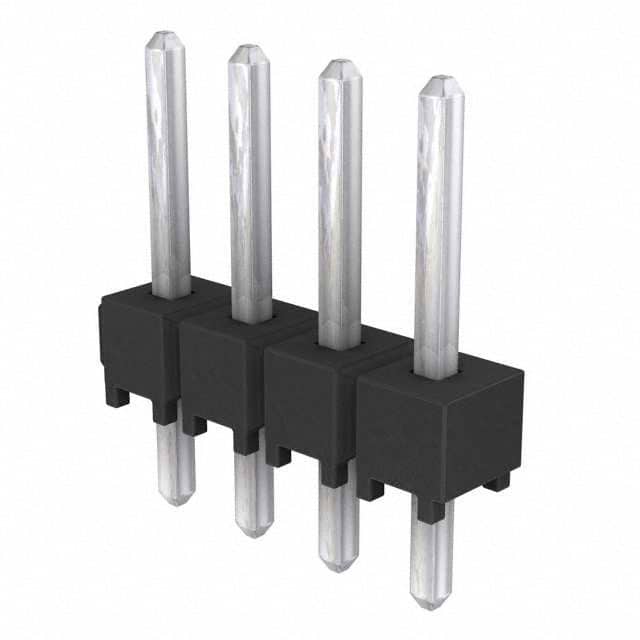

TSW-104-23-T-S Samtec TSW-104-23-T-S is a 4 position, single row, through hole header with 2.54mm pitch and tin plated phosphor bronze contacts.
Mfr Part #:

TSW-104-23-T-S

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-104-23-T-S is a 4 position, single row, through hole header with 2.54mm pitch and tin plated phosphor bronze contacts.
✓ Total Stock: 911 pcs
$ Price Range: $0.10 - $0.38

TSW-104-23-T-S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
911 pcs
On Request
911 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-104-23-T-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-104-23-T-S Description

Short technical summary and product information.

The Samtec TSW-104-23-T-S is a 4 position, single row, through hole header from the TSW series. It features a 2.54mm (0.100") pitch and unshrouded male pin contacts with a square 0.635mm (0.025") post. The contacts are made of phosphor bronze with a tin finish, providing reliable electrical connections. The overall contact length is 11.30mm (0.445") with a contact length of 5.84mm (0.230").



The header is designed for through hole mounting with solder termination. The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C. The push-pull fastening type and board-to-board or cable style make it suitable for a variety of interconnection applications.



Packaged in bulk, this header is commonly used in prototyping, industrial control, and general purpose electronic assemblies. The TSW series offers design flexibility with multiple plating and terminal options. For detailed electrical ratings, refer to the manufacturer's datasheet.

TSW-104-23-T-S Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-104-23-T-S 4 Position Single Row Through Hole Header, 2.54mm Pitch
Subcategory: Male Pins

TSW-104-23-T-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-104-23-T-S Estimated Pricing

Qty Low High
1+ $0.38 $0.38
50+ $0.31 $0.31
100+ $0.25 $0.25
500+ $0.20 $0.20
1,000+ $0.14 $0.14
2,000+ $0.13 $0.13
5,000+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-104-23-T-S Features

  • 4 position single row through hole header.
  • 2.54mm pitch for standard applications.
  • Tin plated phosphor bronze contacts.
  • Unshrouded push-pull design.
  • UL94 V-0 rated PBT insulation.

TSW-104-23-T-S Applications

  • Used in board-to-board stacking applications.
  • Suitable for cable-to-board connections.
  • Ideal for prototyping and production.
  • Common in industrial control systems.

TSW-104-23-T-S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-104-23-T-S have?

4 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin.

What is the insulation material?

Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.

Is this header shrouded?
