Mfr Part #:

TSW-104-09-G-S

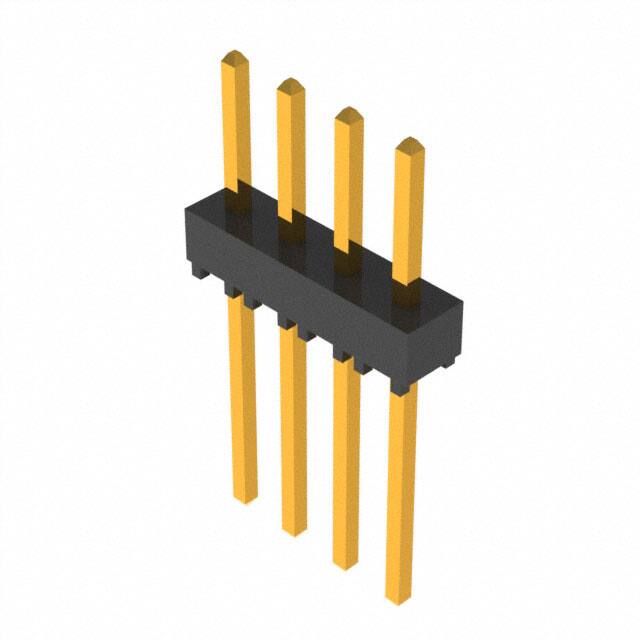

Samtec TSW-104-09-G-S is a 4-position single row unshrouded through-hole header with 2.54mm pitch. It features gold plated phosphor bronze contacts and a black PBT insulator with UL94 V-0 flammability rating.

✓ Total Stock: 106 pcs

$ Price Range: $0.28 - $0.54

TSW-104-09-G-S Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	106 pcs On Request	106 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-104-09-G-S Description

Short technical summary and product information.

The Samtec TSW-104-09-G-S is a 4-position single row unshrouded header from the TSW series. It is designed for through-hole mounting and features a 2.54mm (0.100") pitch, making it suitable for board-to-board or cable applications.

The header has male square pins made of phosphor bronze with a gold finish of 10.0µin (0.25µm). The overall contact length is 0.730" (18.54mm) with a contact length of 5.84mm (0.230"). The insulation height is 2.54mm (0.100"). The insulator is made of black PBT with a UL94 V-0 flammability rating.

The unshrouded design allows for easy mating with various socket strips. The push-pull fastening type ensures simple insertion and removal. The operating temperature range is -55°C to 125°C, suitable for a wide range of environments.

This product is supplied in bulk packaging. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.

TSW-104-09-G-S Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-104-09-G-S 4-Position Single Row Unshrouded Header

Subcategory: Unshrouded Header

TSW-104-09-G-S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

Lead Free: Yes

TSW-104-09-G-S Estimated Pricing

Qty	Low	High
1+	$0.54	$0.54
50+	$0.54	$0.54
100+	$0.50	$0.50
500+	$0.47	$0.47
1,000+	$0.39	$0.39
2,000+	$0.35	$0.35
5,000+	$0.31	$0.31
10,000+	$0.28	$0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-104-09-G-S Features

4-position single row unshrouded header.
2.54mm pitch for standard applications.
Gold plated phosphor bronze contacts.
Through-hole mounting with solder termination.
UL94 V-0 rated PBT insulator.

TSW-104-09-G-S Applications

Board-to-board and cable connections.
Mates with Samtec socket strips.
Suitable for prototyping and production.
Used in industrial and automotive applications.

TSW-104-09-G-S FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-104-09-G-S have?

4 positions.

What is the pitch of the TSW-104-09-G-S?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the contact finish?

Gold, 10.0µin (0.25µm) over phosphor bronze.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material and flammability rating?

Black PBT with UL94 V-0 rating.

Is this header shrouded?

No, it is unshrouded.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
AEC Qualified	No
Automotive Grade	No
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Industrial Grade	No
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.730" (18.54mm)
Pitch	2.54mm (0.100")
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
