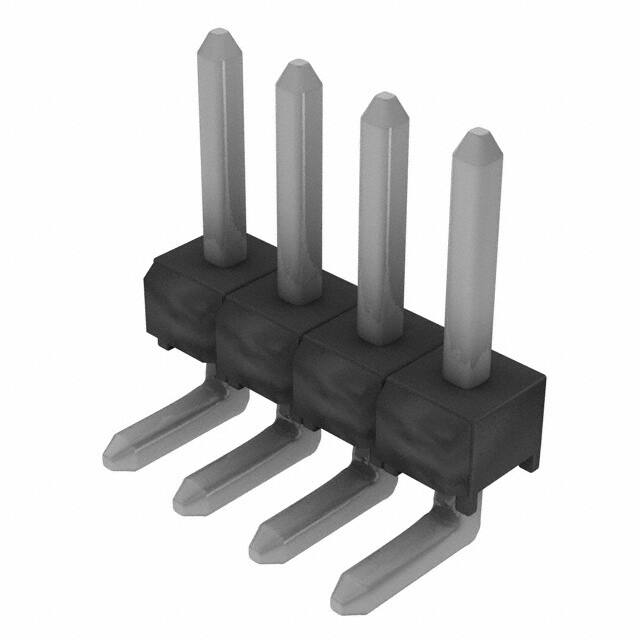

The TSW-104-08-T-S-RA is a 4-position, single-row, right-angle male pin header from Samtec's TSW series. It features a 2.54mm (0.100") pitch and is designed for through-hole solder mounting. The contacts are made of phosphor bronze with a tin finish, and the square pin geometry ensures reliable connectivity. The black PBT insulation is rated UL94 V-0 for flammability, and the operating temperature range is -55°C to 105°C.
This unshrouded header supports board-to-board and cable styles with a push-pull fastening mechanism. All 4 positions are loaded, and the contact length is 5.84mm (0.230") with an insulation height of 3.02mm (0.119"). It is supplied in bulk packaging. This component is suitable for a wide range of applications requiring a compact, right-angle interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
| 50+ | $0.33 | $0.33 |
| 100+ | $0.29 | $0.29 |
| 500+ | $0.21 | $0.21 |
| 1,000+ | $0.16 | $0.16 |
| 2,000+ | $0.15 | $0.15 |
| 5,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100").
Through hole, right angle.
-55°C to 105°C.
Phosphor bronze with tin plating.
PBT with UL94 V-0 rating.
Unshrouded.
