Mfr Part #:

TSW-104-08-T-D-RA

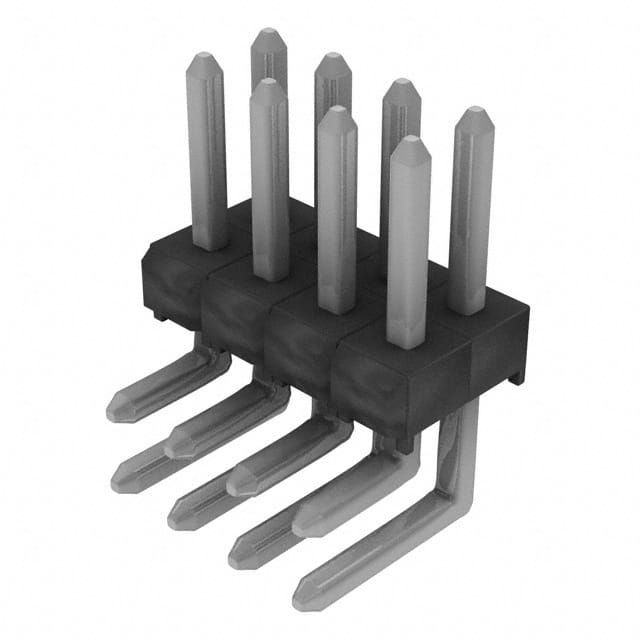

8-position, 2-row, 2.54mm pitch right-angle through-hole header from Samtec's TSW series. Male pins with tin plating, unshrouded, push-pull fastening.

✓ Total Stock: 120 pcs

$ Price Range: $0.34 - $0.63

TSW-104-08-T-D-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	120 pcs On Request	120 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

TSW-104-08-T-D-RA Description

Short technical summary and product information.

Samtec's TSW-104-08-T-D-RA is a 8-position, 2-row right-angle through-hole header from the TSW series. It features male pins with square .025 inch (0.635mm) posts and tin plating over phosphor bronze contacts. The insulation is made of black PBT with a UL94 V-0 flammability rating. The header has an unshrouded push-pull fastening type and supports board-to-board or cable connection styles.

With a pitch of 2.54mm (0.100 inch) and row spacing of 2.54mm, this header is suitable for standard 0.100 inch pitch applications. The operating temperature range is -55°C to 105°C. The component is through-hole mounted with right-angle orientation, making it ideal for compact designs where space is limited.

This header is unshrouded and all 8 positions are loaded. The contact length is 5.84mm (0.230 inch). It is compliant with RoHS (unverified) and REACH (unverified). The packaging is bulk.

TSW-104-08-T-D-RA Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: CONN HEADER R/A 8POS 2.54MM

Subcategory: Rectangular Connectors

TSW-104-08-T-D-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-104-08-T-D-RA Estimated Pricing

Qty	Low	High
1+	$0.63	$0.63
50+	$0.55	$0.55
100+	$0.46	$0.46
500+	$0.38	$0.38
1,000+	$0.36	$0.36
2,000+	$0.36	$0.36
10,000+	$0.34	$0.34
25,000+	$0.34	$0.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-104-08-T-D-RA Features

8 positions in 2 rows with 2.54mm pitch.
Right-angle through-hole mounting for space savings.
Tin-plated phosphor bronze contacts for reliability.
Unshrouded header with push-pull fastening.
UL94 V-0 rated PBT insulation material.

TSW-104-08-T-D-RA Applications

Suitable for board-to-board or cable connections.
Used in industrial control and automation equipment.
Ideal for prototyping and low-cost production.
Common in test and measurement systems.

TSW-104-08-T-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-104-08-T-D-RA have?

8 positions, all loaded, in 2 rows.

What is the pitch of this header?

2.54mm (0.100 inch).

What is the mounting type?

Through-hole, right-angle.

What is the contact finish?

Tin.

What is the operating temperature range?

-55°C to 105°C.

What is the insulation material?

Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.

What is the fastening type?

Push-pull.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.56mm (0.219")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Style	Through Hole
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
