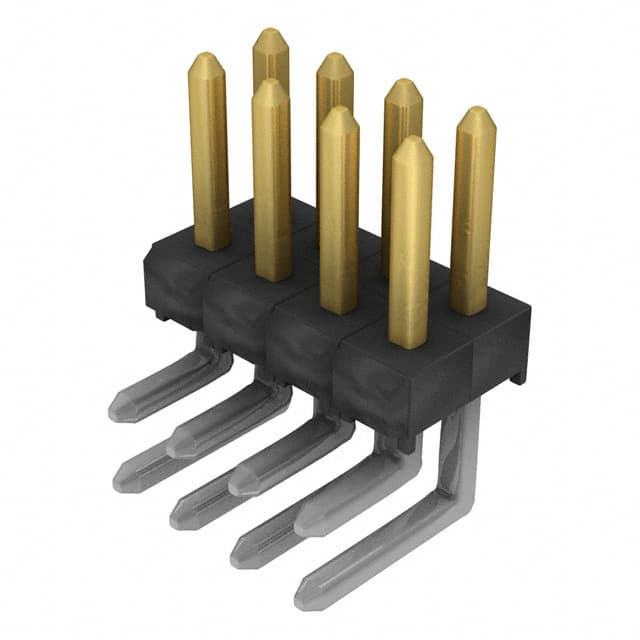

The Samtec TSW-104-08-L-D-RA is a 0.100" (2.54mm) pitch through-hole header from the TSW series. It features 8 positions arranged in 2 rows with a right-angle lead style, making it suitable for board-to-board or cable-to-board connections. The contacts are square phosphor bronze pins with 10µin Gold on the post and Matte Tin on the tail, over 50µin Nickel underplating.
The insulator is black PBT (Polybutylene Terephthalate) with a UL94 V-0 flammability rating. The header has an insulation height of 5.56mm, a post length of 5.84mm, and a tail length of 2.286mm. It operates over a temperature range of -55°C to +125°C and is rated for 5.7A per pin when mated with Samtec SSW socket strips, with a voltage rating of 550 VAC.
This unshrouded header uses push-pull fastening and is designed for solder termination. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. The TSW series offers a wide variety of pin counts, terminal lengths, and plating options for design flexibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 50+ | $0.83 | $0.83 |
| 100+ | $0.80 | $0.80 |
| 500+ | $0.71 | $0.71 |
| 1,000+ | $0.41 | $0.41 |
| 2,000+ | $0.37 | $0.37 |
| 5,000+ | $0.35 | $0.35 |
| 10,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The current rating is 5.7A per pin when mated with Samtec SSW socket strips.
The voltage rating is 550 VAC when mated with Samtec SSW socket strips.
It is a through-hole, right-angle mounting header with solder termination.
The operating temperature range is -55°C to +125°C.
The contact finish is 10µin Gold on the post and Matte Tin on the tail, over 50µin Nickel underplating.
