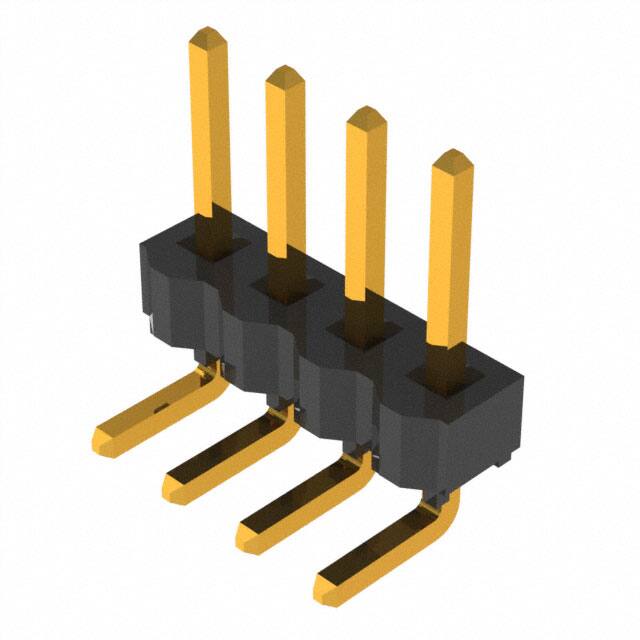

TSW-104-08-G-S-RA Samtec TSW-104-08-G-S-RA is a 4-position, single-row, right-angle through-hole header with 2.54mm pitch and gold flash contacts.
Mfr Part #:

TSW-104-08-G-S-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-104-08-G-S-RA is a 4-position, single-row, right-angle through-hole header with 2.54mm pitch and gold flash contacts.
✓ Total Stock: 3 pcs
$ Price Range: $0.31 - $0.70

TSW-104-08-G-S-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-104-08-G-S-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-104-08-G-S-RA Description

Short technical summary and product information.

The Samtec TSW-104-08-G-S-RA is a 4-position, single-row, right-angle through-hole header from the TSW series. It features a 2.54mm (0.100") pitch and unshrouded design suitable for board-to-board or cable applications.



The connector uses 0.025" (0.635mm) square phosphor bronze male pins with a gold flash contact finish (0.25µm / 10.0µin). The black PBT insulator is rated UL94 V-0 for flammability. Operating temperature range is -55°C to 125°C.



This right-angle header has a post length of 5.84mm (0.230") and a tail length of 2.29mm (0.090"). It is packaged in bulk and designed for solder termination.

TSW-104-08-G-S-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-104-08-G-S-RA .100" 2.54mm Through Hole Header, 4 Position, 1 Row, Right Angle, Gold Flash
Subcategory: Unshrouded, Right Angle

TSW-104-08-G-S-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-104-08-G-S-RA Estimated Pricing

Qty Low High
1+ $0.70 $0.70
50+ $0.62 $0.62
100+ $0.53 $0.53
500+ $0.52 $0.52
1,000+ $0.40 $0.40
2,000+ $0.36 $0.36
5,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-104-08-G-S-RA Features

  • 4-position single-row right-angle header.
  • 2.54mm (0.100") pitch spacing.
  • Gold flash plated phosphor bronze contacts.
  • Through-hole solder termination.
  • UL94 V-0 rated PBT insulator.

TSW-104-08-G-S-RA Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connection systems.
  • General purpose signal routing.

TSW-104-08-G-S-RA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSW-104-08-G-S-RA?

The pitch is 2.54mm (0.100").

How many positions does this header have?

It has 4 positions in a single row, all loaded.

What is the mounting type of this connector?

Through-hole, right angle mounting.

What is the contact finish?

Gold flash, 0.25µm (10.0µin) thickness.

What is the operating temperature range?

-55°C to 125°C.
