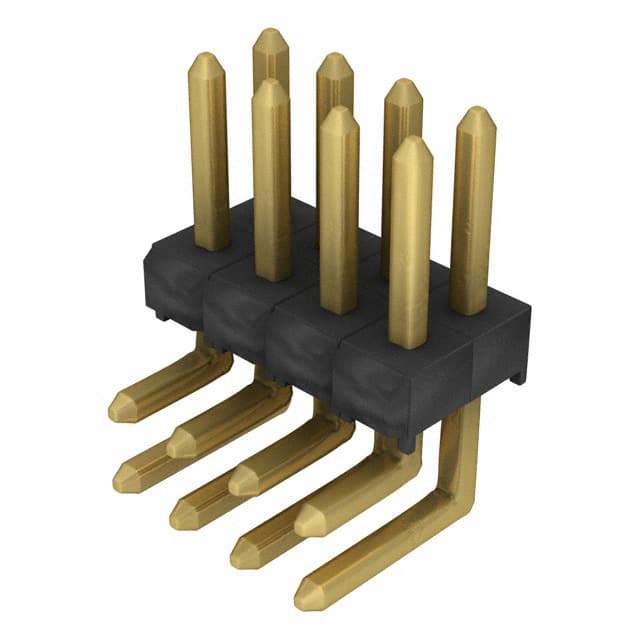

TSW-104-08-G-D-RA Samtec TSW-104-08-G-D-RA is a 8-position, 2-row right angle through-hole header with 2.54mm pitch and gold plated contacts.
Mfr Part #:

TSW-104-08-G-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-104-08-G-D-RA is a 8-position, 2-row right angle through-hole header with 2.54mm pitch and gold plated contacts.
✓ Total Stock: 34 pcs
$ Price Range: $0.54 - $1.20

TSW-104-08-G-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
34 pcs
On Request
34 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-104-08-G-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-104-08-G-D-RA Description

Short technical summary and product information.

The Samtec TSW-104-08-G-D-RA is an 8-position, 2-row right angle through-hole header from the TSW series. It features a 2.54mm (0.100") pitch and row spacing, with square male pins made of phosphor bronze and finished with 10.0µin (0.25µm) gold plating. The insulation is black PBT (Polybutylene Terephthalate) rated UL94 V-0, with a height of 5.56mm (0.219"). The connector is unshrouded and uses push-pull fastening, suitable for board-to-board or cable mating. Operating temperature range is -55°C to 125°C. This header is supplied in bulk packaging.

TSW-104-08-G-D-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: 8 Position Right Angle Through Hole Header, 2.54mm Pitch, Gold Plating
Subcategory: Through Hole Right Angle Header

TSW-104-08-G-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-104-08-G-D-RA Estimated Pricing

Qty Low High
1+ $1.20 $1.20
50+ $1.12 $1.12
100+ $0.99 $0.99
1,000+ $0.71 $0.71
2,000+ $0.67 $0.67
5,000+ $0.58 $0.58
10,000+ $0.54 $0.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-104-08-G-D-RA Features

  • 8 positions in 2 rows for dense layouts.
  • Right angle through-hole mounting for board-edge connections.
  • 2.54mm pitch standard for prototyping.
  • Gold plated contacts for reliable connections.
  • UL94 V-0 rated PBT insulation.

TSW-104-08-G-D-RA Applications

  • Ideal for board-to-board interconnects.
  • Suitable for cable-to-board applications.
  • Common in prototyping and test fixtures.
  • Used in industrial control systems.
  • Peripheral connections in computing.

TSW-104-08-G-D-RA FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

8 positions in 2 rows.

What is the pitch of this connector?

2.54mm (0.100")

What is the mounting type?

Through hole, right angle.

What is the contact finish?

Gold, 10.0µin (0.25µm) thickness.

What is the operating temperature range?

-55°C to 125°C

Is this component RoHS compliant?

RoHS3 compliant, unverified low confidence.
