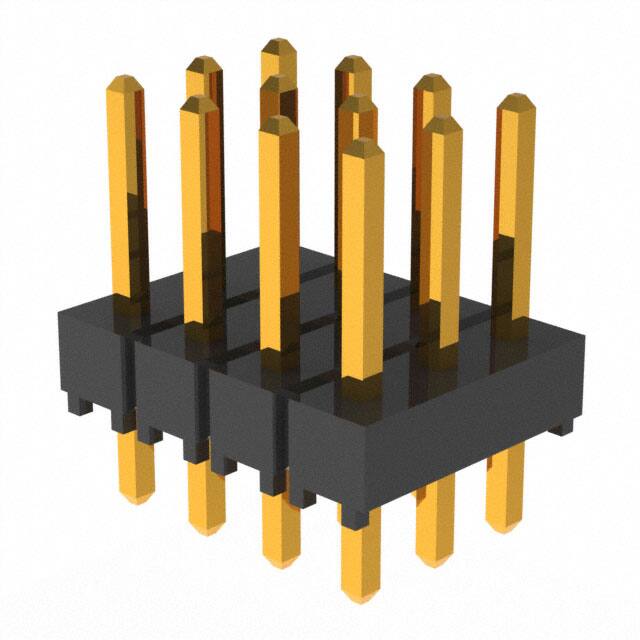

The Samtec TSW-104-07-G-T is a 12-position, 3-row unshrouded through hole header from the TSW series, designed for classic 0.100" (2.54mm) pitch applications. It features square male pins with a 0.025" (0.635mm) cross-section, gold contact finish (10.0µin / 0.25µm) over 50µ" nickel underplating, and phosphor bronze terminal material. The insulator is black PBT (Polybutylene Terephthalate) with a UL94 V-0 flammability rating.
The header has a straight lead style with a 0.230" (5.84mm) post length and a 0.430" (10.92mm) overall contact length. It is rated for an operating temperature range of -55°C to +125°C. Electrical ratings vary by mating connector: up to 550 VAC when mated with SSW sockets, and per-pin current ratings from 4.3 A to 6.3 A depending on the mating connector and number of powered positions.
This component is packaged in bulk and is intended for through-hole soldering. It is suitable for board-to-board or cable-to-board interconnect applications. Note that the TSW series is not lead-free solderable and requires lead wave soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.46 | $1.46 |
| 25+ | $1.45 | $1.45 |
| 50+ | $1.21 | $1.21 |
| 100+ | $1.00 | $1.00 |
| 500+ | $0.92 | $0.92 |
| 2,000+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 12 positions arranged in 3 rows.
It is a through hole mount component with solder termination.
The voltage rating depends on the mating connector: 550 VAC mated with SSW, 500 VAC mated with BCS, and 515 VAC mated with ESQ.
The current rating per pin varies by mating connector, ranging from 4.3 A (mated with SNT) to 6.3 A (mated with SSQ), with 2 positions powered.
The operating temperature range is -55°C to +125°C.
No, the TSW series is not lead-free solderable; it requires lead wave soldering.
