| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2010 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

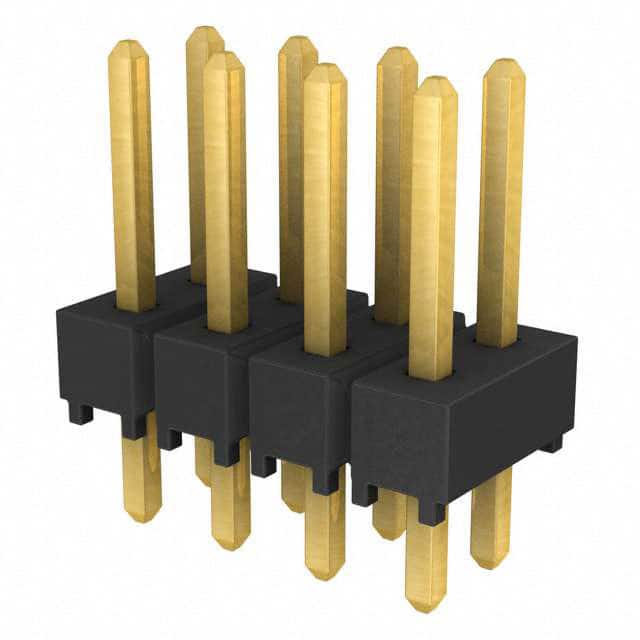

The Samtec TSW-104-07-G-D is a 0.100 inch (2.54mm) pitch through-hole header from the TSW series. It has 8 positions arranged in 2 rows, all loaded, with unshrouded male square pins. The contact material is phosphor bronze with a 10 microinch (0.25 micrometer) gold finish over 50 microinch nickel, providing reliable connectivity.
This header is designed for board-to-board or cable applications. It has a push-pull fastening type and is rated for an operating temperature range of -55°C to +125°C. The insulator is made from black PBT with a UL94 V-0 flammability rating. The overall contact length is 0.430 inches (10.92mm) with a post height of 0.230 inches (5.84mm).
Current ratings vary depending on the mating connector, ranging from 4.3A to 6.3A per pin. Voltage ratings also depend on the mate, reaching up to 550 VAC when mated with an SSW socket. The part is packaged in bulk.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.74 | $0.74 |
| 250+ | $0.72 | $0.72 |
| 500+ | $0.51 | $0.51 |
| 1,000+ | $0.50 | $0.50 |
| 2,500+ | $0.43 | $0.43 |
| 5,000+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TSW-104-07-G-D has 8 positions, all loaded, in 2 rows.
The pitch is 2.54mm (0.100 inches) with the same row spacing.
The current rating per pin depends on the mating connector: 6.3A with SSQ, 5.7A with SSW, 5.2A with SLW, SSM, or ESW, 4.6A with BCS, and 4.3A with SNT.
The voltage rating depends on the mating connector: 550 VAC with SSW, 515 VAC with ESQ, 500 VAC with BCS, and 400 VAC with CES.
This header uses through-hole mounting with solder termination.
The operating temperature range is -55°C to +125°C.
The contacts are made of phosphor bronze with a gold finish of 10.0µin (0.25µm).
