TSW-104-07-F-S Samtec TSW-104-07-F-S is a 4-position, single-row, through-hole header with 2.54mm pitch and tin-plated phosphor bronze contacts.
Mfr Part #:

TSW-104-07-F-S

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-104-07-F-S is a 4-position, single-row, through-hole header with 2.54mm pitch and tin-plated phosphor bronze contacts.
✓ Total Stock: 500 pcs
$ Price Range: $0.09 - $0.20

TSW-104-07-F-S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-104-07-F-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-104-07-F-S Description

Short technical summary and product information.

The Samtec TSW-104-07-F-S is a 4-position, single-row, through-hole header from the TSW series, designed for 0.100" (2.54mm) pitch applications. It features unshrouded male square pins with tin plating (3.00µin) on phosphor bronze contacts, providing reliable solder termination for board-to-board or cable connections.



The header has a black PBT insulator rated UL94 V-0, with an insulation height of 2.54mm and an overall contact length of 10.92mm (0.430"). The contact length is 5.84mm (0.230"). It operates over a temperature range of -55°C to 125°C and is supplied in bulk packaging. This part is RoHS3 compliant and REACH unaffected.

TSW-104-07-F-S Quick Information

Product Type: Header, Male Pins
Series: TSW

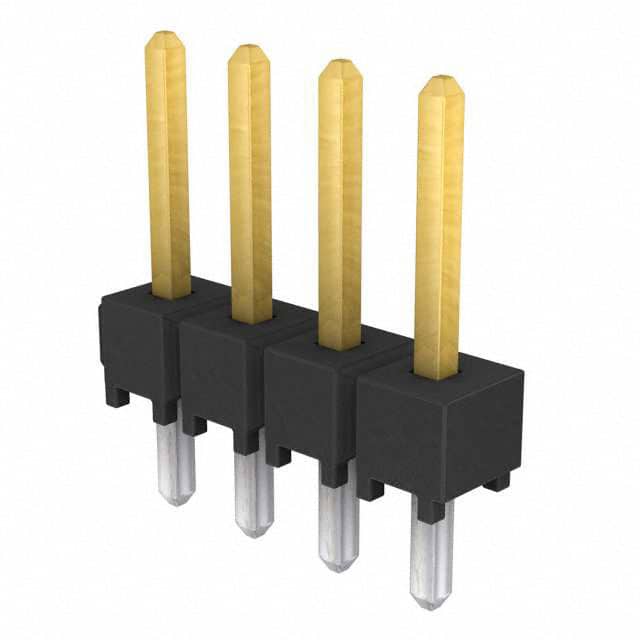

Canonical Name: Samtec TSW-104-07-F-S .100" (2.54mm) Pitch Through Hole Header, 4 Positions, 1 Row, Male Pins, Tin Plating
Subcategory: Unshrouded Header

TSW-104-07-F-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-104-07-F-S Estimated Pricing

Qty Low High
1+ $0.20 $0.20
250+ $0.15 $0.15
500+ $0.13 $0.13
1,000+ $0.12 $0.12
2,500+ $0.11 $0.11
5,000+ $0.10 $0.10
10,000+ $0.10 $0.10
25,000+ $0.09 $0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-104-07-F-S Features

  • 4 position single row through hole header.
  • 2.54mm (0.100") pitch for standard spacing.
  • Tin plated phosphor bronze square contacts.
  • UL94 V-0 rated black PBT insulator.
  • Operating temperature range -55°C to 125°C.

TSW-104-07-F-S Applications

  • Used in board-to-board interconnect applications.
  • Suitable for cable-to-board wiring harnesses.
  • Ideal for general purpose signal routing.

TSW-104-07-F-S FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-104-07-F-S have?

It has 4 positions in a single row.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the mounting type for this part?

It is a through-hole mounting header with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact material and finish?

The contacts are phosphor bronze with a tin finish of 3.00µin (0.076µm).

Is the TSW-104-07-F-S RoHS compliant?

Yes, it is listed as RoHS3 compliant.
