| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

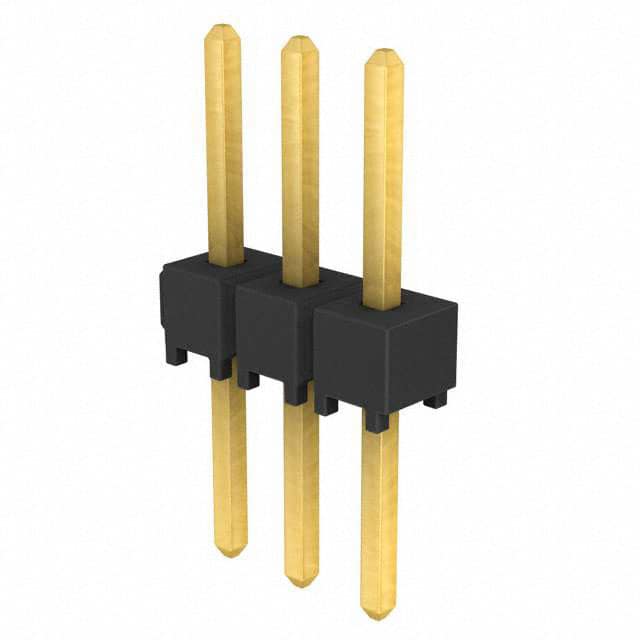

The Samtec TSW-103-26-G-S is a 3-position, single row, through hole header with a 2.54mm (0.100 inch) pitch. It features unshrouded male square pins with a gold finish (10.0µin) over phosphor bronze contacts. The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. This header is designed for vertical mounting and solder termination, suitable for board-to-board or cable-to-board applications. The operating temperature range is -55°C to 125°C. Part of the TSW series, it offers a contact length of 5.84mm and an overall contact length of 11.58mm. The insulation height is 2.54mm. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 50+ | $0.65 | $0.65 |
| 100+ | $0.57 | $0.57 |
| 500+ | $0.49 | $0.49 |
| 1,000+ | $0.40 | $0.40 |
| 2,000+ | $0.35 | $0.35 |
| 5,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm (0.100 inches).
Through hole.
Gold, 10.0µin (0.25µm) thickness.
-55°C to 125°C.
Black PBT with UL94 V-0 rating.
No, it is unshrouded.
