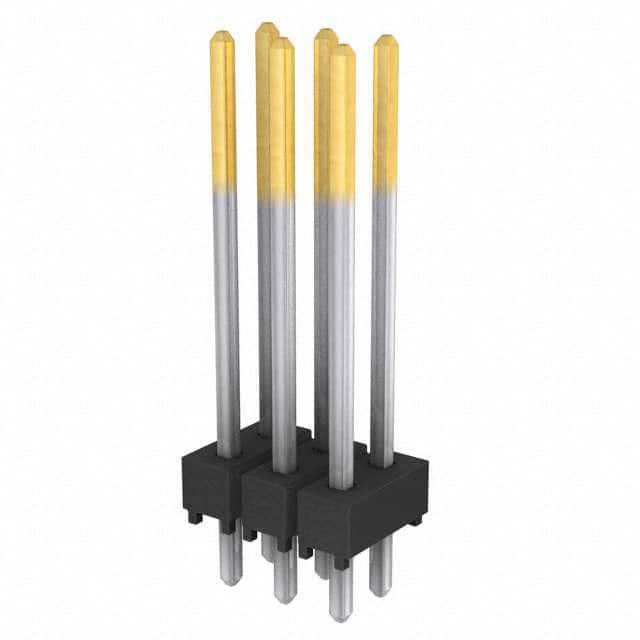

TSW-103-17-L-D A 6-position, 2-row through-hole header from Samtec's TSW series. Features 2.54mm pitch, unshrouded design, and tin-plated phosphor bronze contacts.
Mfr Part #:

TSW-103-17-L-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
A 6-position, 2-row through-hole header from Samtec's TSW series. Features 2.54mm pitch, unshrouded design, and tin-plated phosphor bronze contacts.
✓ Total Stock: 12 pcs
$ Price Range: $0.29 - $0.80

TSW-103-17-L-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-103-17-L-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-103-17-L-D Description

Short technical summary and product information.

The Samtec TSW-103-17-L-D is a vertical through-hole header from the TSW series, designed for 0.100" (2.54mm) pitch applications. It offers 6 positions in 2 rows, all loaded, with male square pins. The unshrouded push-pull design supports board-to-board or cable connections. Termination is through solder. Contacts are phosphor bronze with a tin finish of 10µin thickness. Insulator is black PBT rated UL94 V-0. Operating temperature range is -55°C to 125°C. Overall contact length is 0.830" (21.08mm) and post length is 0.620" (15.75mm). Supplied in bulk packaging.

TSW-103-17-L-D Quick Information

Product Type: Male Pin Header
Series: TSW
Canonical Name: Samtec TSW-103-17-L-D 6-Position 2.54mm Pitch Through Hole Header
Subcategory: Through Hole Header

TSW-103-17-L-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-103-17-L-D Estimated Pricing

Qty Low High
1+ $0.80 $0.80
100+ $0.68 $0.68
500+ $0.52 $0.52
1,000+ $0.42 $0.42
2,000+ $0.38 $0.38
5,000+ $0.33 $0.33
10,000+ $0.30 $0.30
25,000+ $0.29 $0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-17-L-D Features

  • 6 positions in 2 rows configuration.
  • 2.54mm pitch through-hole mounting.
  • Tin-plated phosphor bronze contacts.
  • UL94 V-0 rated PBT insulator.
  • Operating temperature -55°C to 125°C.

TSW-103-17-L-D Applications

  • General purpose board-to-board connections.
  • Prototyping and production assembly.
  • Low to moderate current signal routing.

TSW-103-17-L-D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

6 positions.

What is the pitch?

2.54mm (0.100").

What mounting type does it use?

Through hole.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin with 10µin thickness.

What is the flammability rating of the insulator?

UL94 V-0.

Is the component RoHS compliant?

RoHS3 compliant (unverified).
