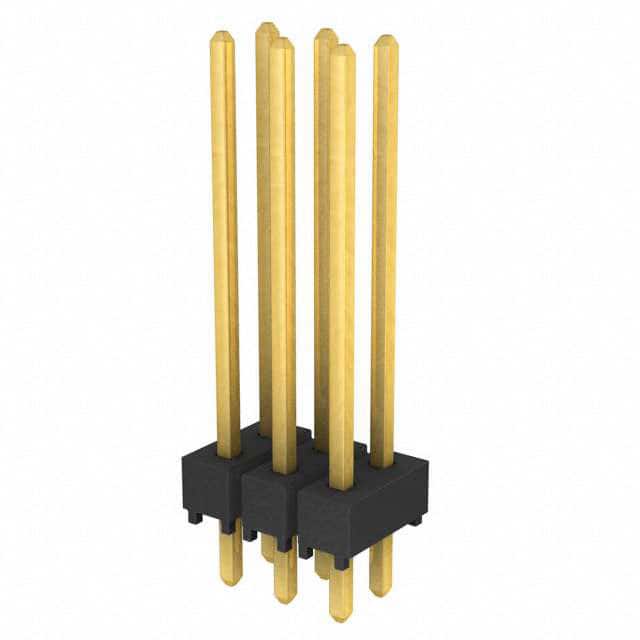

TSW-103-17-G-D Samtec TSW-103-17-G-D is a 6-position, 2-row, 2.54mm pitch through hole header with male square pins and gold contact finish.
Mfr Part #:

TSW-103-17-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-103-17-G-D is a 6-position, 2-row, 2.54mm pitch through hole header with male square pins and gold contact finish.
✓ Total Stock: 10 pcs
$ Price Range: $0.47 - $1.20

TSW-103-17-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-103-17-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-103-17-G-D Description

Short technical summary and product information.

The Samtec TSW-103-17-G-D is a 6-position, 2-row, unshrouded through hole header from the TSW series. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for standard board-to-board or cable applications. The header uses square male pins made of phosphor bronze with a 10.0µin (0.25µm) gold contact finish, ensuring reliable electrical connections.



The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The mounting type is through hole with solder termination. The contact length is 15.75mm (0.620") and the overall contact length is 21.08mm (0.830"). The insulation height is 2.54mm (0.100"). The operating temperature range is -55°C to 125°C.



This header is designed for applications requiring a robust, unshrouded pin header with push-pull fastening. It is packaged in bulk.

TSW-103-17-G-D Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-103-17-G-D .100" (2.54mm) Through Hole Header, 6 Position, 2 Row, Male Pin
Subcategory: Unshrouded Through Hole Header

TSW-103-17-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-103-17-G-D Estimated Pricing

Qty Low High
1+ $1.20 $1.20
50+ $1.13 $1.13
100+ $1.01 $1.01
500+ $0.92 $0.92
1,000+ $0.67 $0.67
2,000+ $0.59 $0.59
5,000+ $0.52 $0.52
10,000+ $0.47 $0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-17-G-D Features

  • 6 position, 2 row header.
  • 2.54mm pitch and row spacing.
  • Gold plated phosphor bronze contacts.
  • Through hole solder termination.
  • UL94 V-0 rated PBT insulator.

TSW-103-17-G-D Applications

  • Board-to-board interconnection applications.
  • Cable-to-board connection systems.
  • Prototyping and test fixtures.
  • General purpose signal routing.

TSW-103-17-G-D FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSW-103-17-G-D?

The pitch is 2.54mm (0.100").

How many positions does the TSW-103-17-G-D have?

It has 6 positions arranged in 2 rows.

What is the mounting type for this header?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold, 10.0µin (0.25µm) thickness.
