Mfr Part #:

TSW-103-08-T-D

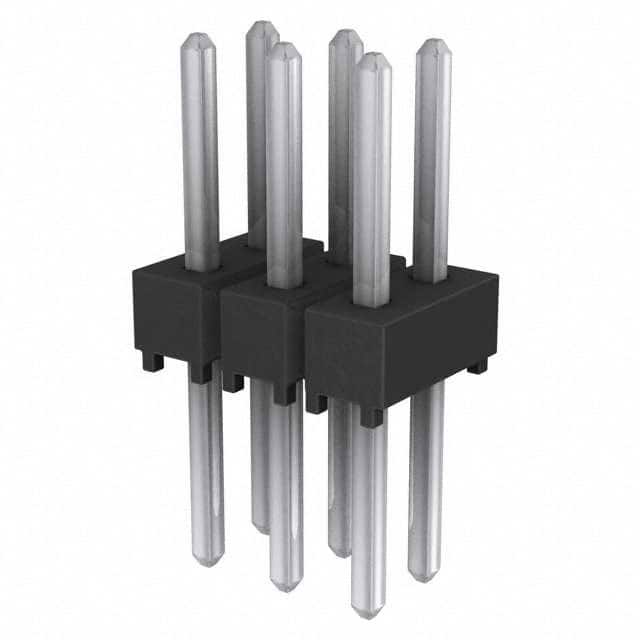

Through hole header with 6 positions in 2 rows, 2.54mm pitch, tin plated square pins. Rated 5.7A per pin and 550VAC when mated with SSW socket.

✓ Total Stock: 34 pcs

$ Price Range: $0.17 - $0.57

TSW-103-08-T-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	34 pcs On Request	34 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-103-08-T-D Description

Short technical summary and product information.

The Samtec TSW-103-08-T-D is a through-hole header from the TSW series, featuring 6 positions arranged in 2 rows with a 2.54mm pitch. It has a 0.025" square pin contact system and tin plating over nickel underplate for reliable electrical connections.

Electrical ratings include 5.7A per pin (with 2 positions powered when mated with SSW socket) and 550VAC voltage rating (mated with SSW). The insulator is black PBT with UL94 V-0 flammability rating. Operating temperature range is -55°C to +105°C.

This header is unshrouded and uses push-pull fastening. It is designed for board-to-board or cable applications. Mounting is through hole with solder termination. Contact length (mating) is 5.84mm and overall contact length 13.46mm.

TSW-103-08-T-D Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: TSW-103-08-T-D Header, Male Pins, 6 Positions, 2 Rows, 2.54mm Pitch, Through Hole

Subcategory: Through Hole Header

TSW-103-08-T-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

Lead Free: Yes

TSW-103-08-T-D Estimated Pricing

Qty	Low	High
1+	$0.57	$0.57
50+	$0.51	$0.51
100+	$0.49	$0.49
1,000+	$0.47	$0.47
5,000+	$0.19	$0.19
10,000+	$0.17	$0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-08-T-D Features

6-position dual-row through-hole header.
2.54mm pitch with tin-plated square pins.
Rated 5.7A and 550VAC when mated.
UL94 V-0 black PBT insulator.
Operating temperature -55°C to 105°C.

TSW-103-08-T-D Applications

Board-to-board interconnection with socket strips.
Cable-to-board connections using IDC sockets.
Prototyping and general-purpose PCB headers.

TSW-103-08-T-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does TSW-103-08-T-D have?

6 positions, all loaded, in 2 rows.

What is the pitch of TSW-103-08-T-D?

2.54mm (0.100").

What is the current rating of TSW-103-08-T-D?

5.7A per pin with 2 positions powered when mated with SSW socket.

What is the voltage rating of TSW-103-08-T-D?

550VAC when mated with SSW socket.

What mounting type does TSW-103-08-T-D use?

Through hole with solder termination.

What are the contact materials and plating?

Phosphor bronze contacts with tin plating over 1.27µm nickel underplate.

What is the operating temperature range?

-55°C to +105°C.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Straight
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C to 105°C
Overall Contact Length	0.530" (13.46mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
