| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

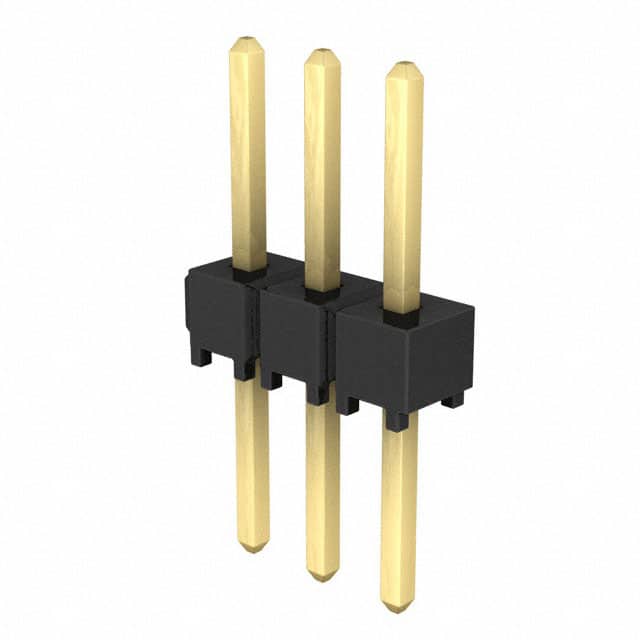

The Samtec TSW-103-08-G-S is a 3 position, single row, 2.54mm pitch through hole header from the TSW series. It features male pin contacts with a square shape, made of phosphor bronze and plated with gold (10.0µin / 0.25µm). The connector is unshrouded with a push-pull fastening type, designed for through hole solder termination. The insulation is made of black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The contact length is 5.84mm and overall contact length is 13.46mm, with an insulation height of 2.54mm. It operates over a temperature range of -55°C to 125°C.
This header is suitable for board-to-board or cable connections, offering design flexibility for a variety of standard 0.100" pitch applications. The gold plating ensures reliable contact performance. The part is supplied in bulk packaging.
Please note that RoHS, REACH, and MSL compliance statuses are unverified and should be confirmed with the manufacturer. Electrical ratings such as current or voltage are not provided in the available data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 100+ | $0.49 | $0.49 |
| 500+ | $0.40 | $0.40 |
| 1,000+ | $0.33 | $0.33 |
| 2,000+ | $0.31 | $0.31 |
| 5,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions.
The pitch is 2.54mm (0.100").
Through hole mounting.
Gold finish with a thickness of 10.0µin (0.25µm).
-55°C to 125°C.
Polybutylene Terephthalate (PBT), black in color.
UL94 V-0.
