Mfr Part #:

TSW-103-08-F-D-RA

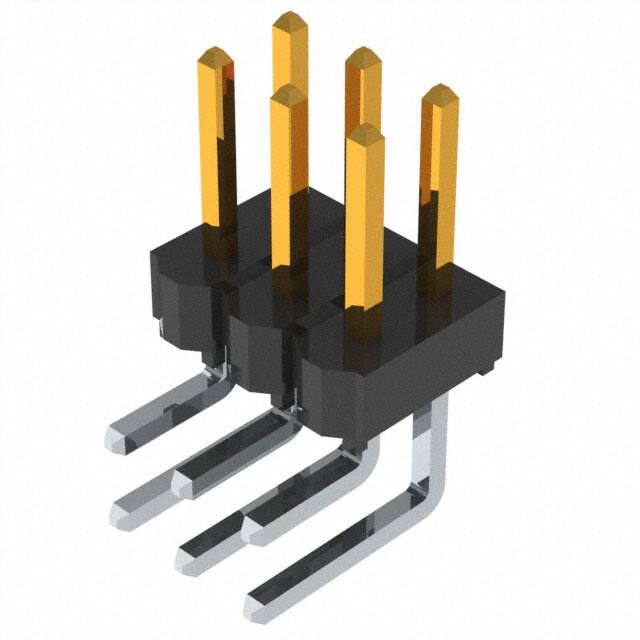

Right angle male pin header with 6 positions, 2 rows, and 2.54mm pitch. Through hole solder termination with gold flash/tin plating.

✓ Total Stock: 37 pcs

$ Price Range: $0.21 - $0.53

TSW-103-08-F-D-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	37 pcs On Request	37 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-103-08-F-D-RA Description

Short technical summary and product information.

The Samtec TSW-103-08-F-D-RA is a 6-position, 2-row right angle male pin header from the TSW series. Designed for 2.54mm (0.100 inch) pitch applications, this unshrouded header features 0.025 inch square phosphor bronze contacts with gold flash on the mating post and matte tin on the solder tails. The contact tail measures 0.090 inch (2.286mm) for through-hole soldering. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to +105°C with tin plating, suitable for many industrial and commercial environments. This connector is designed for board-to-board or cable mating and is compatible with various Samtec socket strips. It is packaged in bulk and is not lead-free solderable, so lead wave soldering is recommended.

TSW-103-08-F-D-RA Quick Information

Product Type: Rectangular Header - Male Pins

Series: TSW

Canonical Name: TSW-103-08-F-D-RA - 6 Position, 2 Row, 2.54mm Pitch, Right Angle, Male Pin Header

Subcategory: Unshrouded Male Pin Header

TSW-103-08-F-D-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

Lead Free: Not Lead-Free Solderable

TSW-103-08-F-D-RA Estimated Pricing

Qty	Low	High
1+	$0.53	$0.53
50+	$0.44	$0.44
100+	$0.37	$0.37
500+	$0.36	$0.36
1,000+	$0.34	$0.34
2,000+	$0.30	$0.30
5,000+	$0.23	$0.23
10,000+	$0.21	$0.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-08-F-D-RA Features

Right angle through hole mounting design.
6 positions in 2 rows with 2.54mm pitch.
Gold flash on mating post, tin on tail.
PBT insulator, 94V-0 rated for flammability.
Unshrouded for board-to-board or cable use.

TSW-103-08-F-D-RA Applications

Board-to-board stacking in tight mechanical layouts.
Cable-to-board connections using IDC sockets.
General purpose signal interconnects requiring right angle orientation.
Prototyping and test fixtures with standard 0.100 inch pitch.

TSW-103-08-F-D-RA FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-103-08-F-D-RA have?

6 positions in 2 rows, all positions loaded.

What is the pitch of the TSW-103-08-F-D-RA?

2.54mm (0.100 inch).

What is the mounting type of this header?

Through hole, right angle, solder termination.

What is the operating temperature range?

-55°C to +105°C with tin plating, or -55°C to +125°C with gold plating.

What is the contact plating?

Gold flash on the contact post and matte tin on the tail.

What is the insulator material?

Polybutylene terephthalate (PBT) with UL94 V-0 flammability rating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold Flash/Tin
Contact Finish Thickness	3.00µin (0.076µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Failure Rate	TSW
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.56mm (0.219")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Style	-08
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
