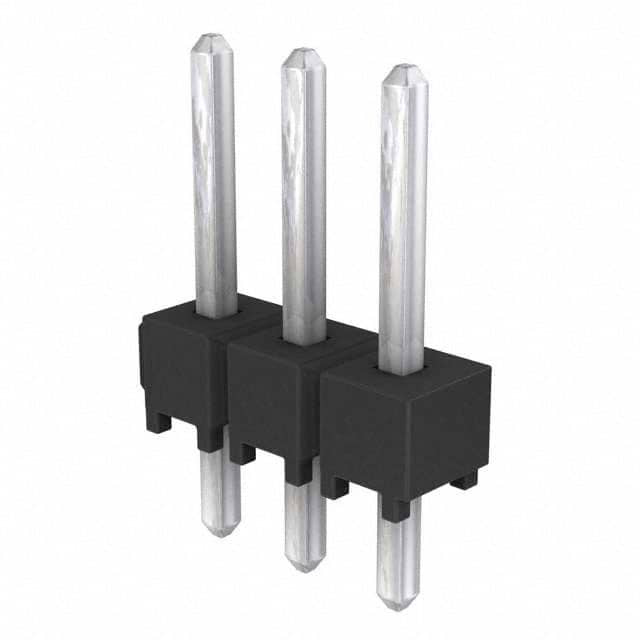

The TSW-103-07-T-S is a 3-position, single-row through-hole header from Samtec's TSW series. It features square tin-plated phosphor bronze pins with a 2.54mm (0.100 inch) pitch, making it suitable for standard board-to-board or cable-to-board interconnections. The unshrouded vertical header has a black PBT insulator rated UL94 V-0, ensuring reliable performance in a wide range of environments.
Electrical ratings are 5.7A per pin (typical, with 2 positions powered) and 550VAC (typical, conditioned on mating with SSW socket strip). The operating temperature range is -55°C to 105°C for tin-plated contacts. The contact length is 5.84mm (0.230 inches) with an overall contact length of 10.92mm (0.430 inches). Insulation height is 2.54mm (0.100 inches).
Termination is solder through-hole, with a push-pull fastening mechanism. The part is supplied in bulk packaging. It is designed for vertical mounting and is compatible with a variety of Samtec socket strips such as SSW, SSQ, and ESW.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
| 250+ | $0.14 | $0.14 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.11 | $0.11 |
| 2,500+ | $0.10 | $0.10 |
| 5,000+ | $0.08 | $0.08 |
| 10,000+ | $0.06 | $0.06 |
| 25,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions, all loaded, in a single row.
The pitch is 2.54mm (0.100 inches).
The typical current rating is 5.7A per pin when mated with SSW, with 2 positions powered.
The typical voltage rating is 550VAC when mated with SSW.
It is through-hole mounting with solder termination.
The operating temperature range is -55°C to 105°C for tin-plated contacts.
The insulator is made of Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.
