Mfr Part #:

TSW-103-07-G-T

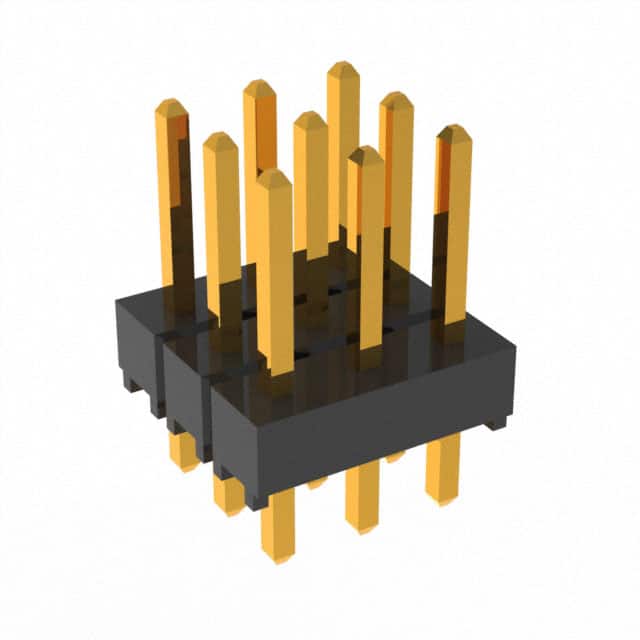

9-position, 3-row, 2.54mm pitch through hole header with gold plated phosphor bronze contacts. Unshrouded with push-pull fastening, rated for -55°C to 125°C.

✓ Total Stock: 12 pcs

$ Price Range: $0.61 - $1.10

TSW-103-07-G-T Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Emiteli ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-103-07-G-T Description

Short technical summary and product information.

The Samtec TSW-103-07-G-T is a 9-position, 3-row through hole header with a 2.54mm (0.100") pitch and row spacing. It features 0.025" square male pins with a 10µin gold flash finish over phosphor bronze, providing reliable low-level signal connections. The mating contact length is 5.84mm (0.230") and the overall contact length is 10.92mm (0.430").

The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, and the header is unshrouded with a push-pull fastening type. It is designed for vertical through-hole mounting with solder termination, suitable for board-to-board or cable applications. The operating temperature range is -55°C to 125°C.

Packaged in bulk, this header is part of Samtec's TSW series, which offers a wide variety of pin counts, terminal lengths, and plating options. It mates with Samtec socket strips such as the SSW, BCS, and ESQ series.

TSW-103-07-G-T Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-103-07-G-T .100in/2.54mm Through Hole Header, 9 Pin, 3 Row, 10µin Gold/Flash, .230in Post, .430in OAL

Subcategory: Unshrouded Header

TSW-103-07-G-T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-103-07-G-T Estimated Pricing

Qty	Low	High
1+	$1.10	$1.10
10+	$1.09	$1.09
50+	$0.91	$0.91
100+	$0.75	$0.75
500+	$0.71	$0.71
1,000+	$0.68	$0.68
2,000+	$0.61	$0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-07-G-T Features

9-position 3-row 2.54mm pitch header.
Gold plated phosphor bronze contacts.
Through hole solder termination.
Unshrouded push-pull design.
UL94 V-0 rated PBT insulator.

TSW-103-07-G-T Applications

Board-to-board stacking applications.
Cable-to-board interconnect systems.
Prototyping and test fixtures.
General purpose signal routing.

TSW-103-07-G-T FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-103-07-G-T have?

9 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the contact finish?

Gold, 10.0µin (0.25µm).

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material?

Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.

Is this header shrouded or unshrouded?

Unshrouded.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature	-55°C ~ 125°C
Orientation	Vertical
Overall Contact Length	0.430" (10.92mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Termination Style	Solder
