Mfr Part #:

TSW-103-07-G-S-LL

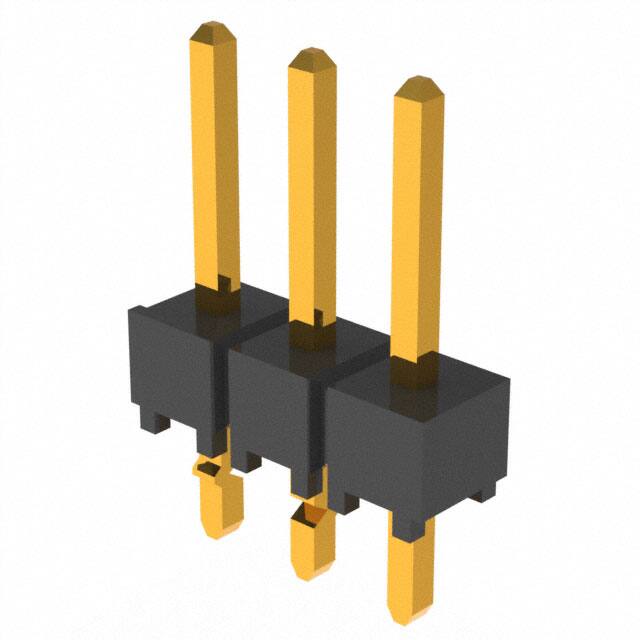

The Samtec TSW-103-07-G-S-LL is a 3-position header with a 2.54mm pitch and gold-plated phosphor bronze contacts. It is designed for through-hole mounting in board-to-board or cable applications.

✓ Total Stock: 4,850 pcs

$ Price Range: $0.77

TSW-103-07-G-S-LL Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	4,850 pcs On Request	4850 pcs	On Request	1	On Request	On Request	21+	On Request	On Request

TSW-103-07-G-S-LL Description

Short technical summary and product information.

This Samtec TSW-103-07-G-S-LL header is a component within the TSW/HTSW series, designed for reliable connections in board-to-board or cable applications. It features 3 positions with a standard 2.54mm (0.100") pitch and a single row configuration.

The header utilizes phosphor bronze contacts with a gold plating, ensuring good conductivity and durability. The insulation material is Polybutylene Terephthalate (PBT) in a black color, rated to UL94 V-0 for material flammability. The operating temperature range is -55°C to +125°C.

Designed for through-hole mounting, this unshrouded header has a kinked pin termination style suitable for soldering. The contact length is 5.84mm (0.230"), with an overall contact length of 10.92mm (0.430"). The TSW series is not lead-free solderable, requiring lead wave soldering.

This component is compatible with various board mates such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, and SLW, and cable mates like IDSD and IDSS.

TSW-103-07-G-S-LL Quick Information

Product Type: Header

Series: TSW

Canonical Name: Samtec TSW-103-07-G-S-LL Through Hole Header, 3 Positions, 2.54mm Pitch, Gold Contact Finish

Subcategory: Male Pins

TSW-103-07-G-S-LL Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TSW-103-07-G-S-LL Estimated Pricing

Qty	Low	High
1+	$0.77	$0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-07-G-S-LL Features

3 position, single row header.
2.54mm (0.100") pitch.
Gold plated phosphor bronze contacts.
Through hole mounting.
UL94 V-0 flammability rating.

TSW-103-07-G-S-LL Applications

Ideal for board-to-board connections.
Suitable for cable assemblies.
Used in various electronic systems.
Reliable interconnect solutions.

TSW-103-07-G-S-LL FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-103-07-G-S-LL have?

3 positions.

What is the pitch of the TSW-103-07-G-S-LL?

2.54mm (0.100").

What is the mounting type of the TSW-103-07-G-S-LL?

Through hole.

What is the contact finish?

Gold, 10.0µin thickness.

What is the operating temperature range?

-55°C to 125°C (derated to 105°C with tin).

What is the insulation material and flammability rating?

PBT with UL94 V-0 rating.

What is the connector style?

Board to board or cable, unshrouded header.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Style	TSW
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C to +105°C with Tin
Overall Contact Length	0.430" (10.92mm)
Pitch	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Kinked Pin, Solder
