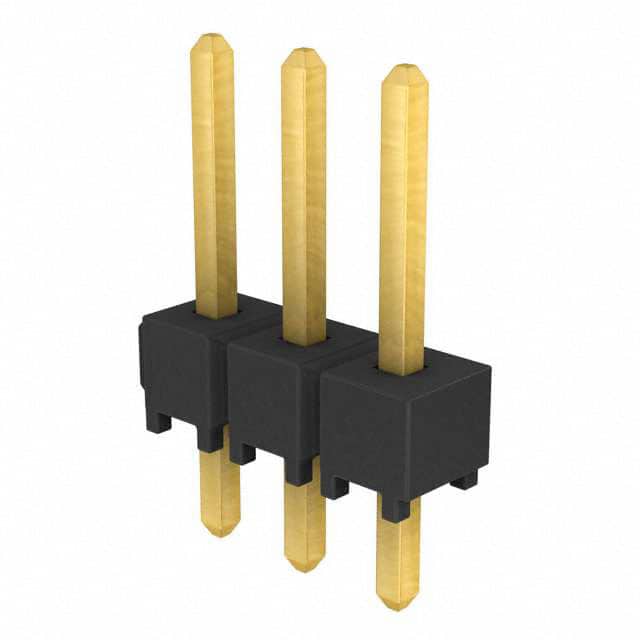

TSW-103-07-G-S Samtec TSW-103-07-G-S is a 3-position, single row, 2.54mm pitch through-hole header with gold plated phosphor bronze contacts. It features a vertical orientation and unshrouded push-pull design.
Mfr Part #:

TSW-103-07-G-S

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSW-103-07-G-S is a 3-position, single row, 2.54mm pitch through-hole header with gold plated phosphor bronze contacts. It features a vertical orientation and unshrouded push-pull design.
✓ Total Stock: 2,168 pcs
$ Price Range: $0.18 - $0.32

TSW-103-07-G-S Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,440 pcs
$0.24 ℹ
Qty Price
0+ 0.24
1440 pcs $0.24
QtyPrice
0+ 0.24
1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
728 pcs
On Request
728 pcs On Request 1 On Request On Request 1131 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-103-07-G-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-103-07-G-S Description

Short technical summary and product information.

The Samtec TSW-103-07-G-S is a 3-position, single row, 2.54mm pitch through-hole header from the TSW series. It features male pin contacts with a square 0.025" (0.635mm) post, gold plating (10.0µin) over phosphor bronze, and a black PBT insulator with UL94 V-0 flammability rating.



This unshrouded header has a vertical orientation and push-pull fastening type, making it suitable for board-to-board or cable applications. The overall contact length is 0.430" (10.92mm) with a contact length of 0.230" (5.84mm) and insulation height of 0.100" (2.54mm). It is designed for through-hole solder termination and operates over a temperature range of -55°C to 125°C.



Packaged in bulk, this header is ideal for prototyping and production runs. The gold finish ensures reliable low-resistance connections in demanding environments.

TSW-103-07-G-S Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-103-07-G-S 3-Position 2.54mm Pitch Single Row Through-Hole Header
Subcategory: Male Pins

TSW-103-07-G-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-103-07-G-S Estimated Pricing

Qty Low High
1+ $0.32 $0.32
250+ $0.29 $0.29
500+ $0.26 $0.26
1,000+ $0.23 $0.23
2,500+ $0.21 $0.21
5,000+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-07-G-S Features

  • 3 positions in single row.
  • 2.54mm pitch for standard spacing.
  • Gold plated phosphor bronze contacts.
  • Through-hole solder termination.
  • Operating temperature -55°C to 125°C.

TSW-103-07-G-S Applications

  • Board-to-board or cable connections.
  • Suitable for prototyping and production.
  • Used in industrial and consumer electronics.
  • Ideal for signal and power distribution.

TSW-103-07-G-S FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-103-07-G-S have?

3 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the contact finish?

Gold, 10.0µin thickness.

What is the operating temperature range?

-55°C to 125°C.
