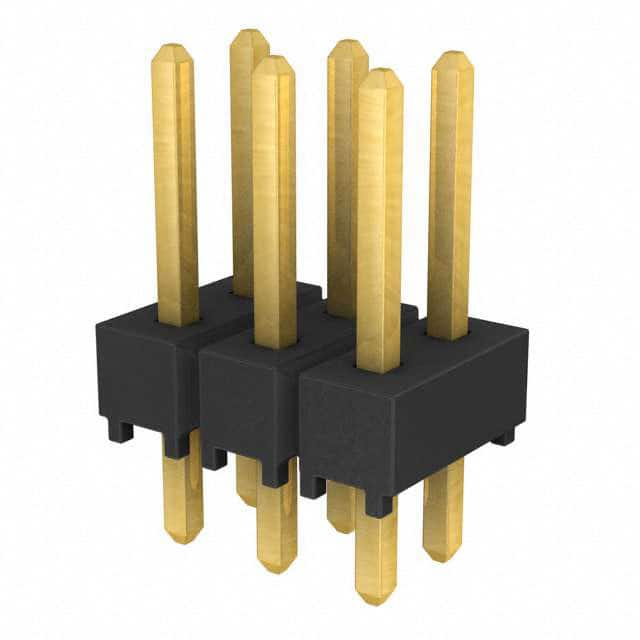

TSW-103-07-G-D The Samtec TSW-103-07-G-D is a 6-position, 2-row through-hole male pin header featuring a 2.54mm pitch. It has unshrouded design, gold plating, and push-pull fastening.
Mfr Part #:

TSW-103-07-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec TSW-103-07-G-D is a 6-position, 2-row through-hole male pin header featuring a 2.54mm pitch. It has unshrouded design, gold plating, and push-pull fastening.
✓ Total Stock: 5 pcs
$ Price Range: $0.29 - $0.57

TSW-103-07-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-103-07-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-103-07-G-D Description

Short technical summary and product information.

The Samtec TSW-103-07-G-D is a through-hole male pin header designed for board-to-board or cable applications. It features 6 positions arranged in 2 rows with a standard 2.54mm pitch, making it compatible with common breadboards and prototype PCBs.



The connector uses phosphor bronze contacts with a gold finish of 0.25µm thickness, ensuring reliable signal integrity and corrosion resistance. The insulation is made of polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, suitable for safety-critical environments.



This unshrouded header has a push-pull fastening mechanism and an operating temperature range from -55°C to 125°C. It is supplied in bulk packaging and terminated via solder for through-hole mounting. The overall contact length is 10.92mm with a contact length of 5.84mm.

TSW-103-07-G-D Quick Information

Product Type: Through-Hole Header
Series: TSW
Canonical Name: Samtec TSW-103-07-G-D 6 Position Through Hole Header

TSW-103-07-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-103-07-G-D Estimated Pricing

Qty Low High
1+ $0.57 $0.57
250+ $0.46 $0.46
500+ $0.41 $0.41
1,000+ $0.38 $0.38
5,000+ $0.33 $0.33
10,000+ $0.30 $0.30
25,000+ $0.29 $0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-103-07-G-D Features

  • Through-hole mounting with 2.54mm pitch.
  • Gold-plated phosphor bronze contacts.
  • 6 positions in 2 rows.
  • UL94 V-0 rated PBT insulation.
  • Operating temperature -55°C to 125°C.

TSW-103-07-G-D Applications

  • Used in board-to-board interconnections.
  • Suitable for cable-to-board connections.
  • Ideal for prototyping and production PCBs.

TSW-103-07-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-103-07-G-D header have?

It has 6 positions.

How many rows does this connector have?

2 rows.

What is the pitch of the TSW-103-07-G-D?

The pitch is 2.54 mm (0.100 inch).

What is the mounting type of this header?

Through-hole mounting.

What is the contact finish?

Gold finish with 0.25 µm thickness.

What is the operating temperature range?

-55°C to 125°C.

What is the flammability rating of the insulation?

UL94 V-0.
