Mfr Part #:

TSW-102-17-G-D

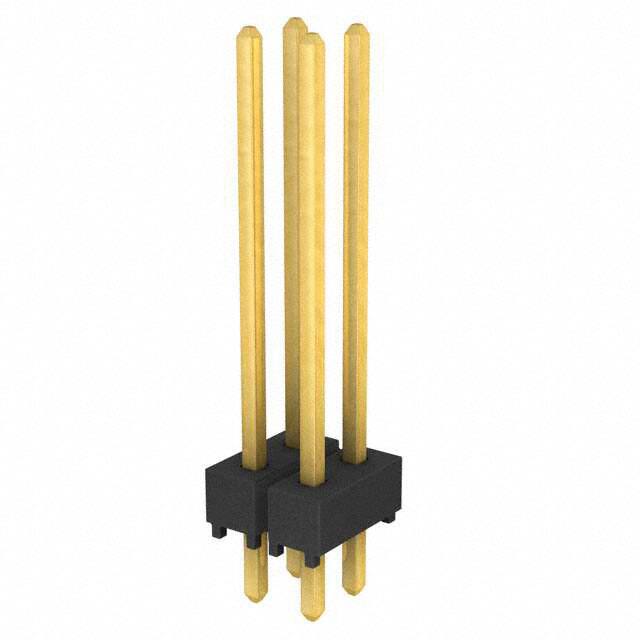

Samtec TSW-102-17-G-D is a 4-position, 2-row, 2.54mm pitch through-hole header with gold contacts. It features a 0.620" post length and 0.830" overall length, suitable for board-to-board or cable connections.

✓ Total Stock: 10 pcs

$ Price Range: $0.29 - $0.62

TSW-102-17-G-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	NO DC	On Request	On Request

TSW-102-17-G-D Description

Short technical summary and product information.

The Samtec TSW-102-17-G-D is a 4-position, 2-row through-hole header with a 2.54mm (0.100") pitch. It features 0.025" (0.635mm) square phosphor bronze contacts with a 10µin (0.25µm) gold finish over 50µ" (1.27µm) nickel underplating. The unshrouded, push-pull design allows for easy mating and unmating. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. This header supports a -55°C to 125°C operating temperature range and is intended for board-to-board or cable applications. The mounting type is through-hole with solder termination, and the product is supplied in bulk packaging.

TSW-102-17-G-D Quick Information

Product Type: Header, Male Pins

Series: TSW-102

Canonical Name: .100in/2.54mm Through Hole Header, 4 Pin, 2 Row, 10µin Gold/Flash, .620in Post, .830in OAL

Subcategory: Male Pins

TSW-102-17-G-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-102-17-G-D Estimated Pricing

Qty	Low	High
1+	$0.62	$0.62
50+	$0.54	$0.54
100+	$0.49	$0.49
1,000+	$0.44	$0.44
2,000+	$0.38	$0.38
5,000+	$0.33	$0.33
10,000+	$0.29	$0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-102-17-G-D Features

4-position, 2-row through-hole header.
2.54mm (0.100") pitch for standard spacing.
Gold-plated phosphor bronze contacts.
Unshrouded push-pull design.
Operating temperature from -55°C to 125°C.

TSW-102-17-G-D Applications

Used for board-to-board connections.
Ideal for cable-to-board interfaces.
Suitable for prototyping and production.
Common in industrial and commercial electronics.

TSW-102-17-G-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this header have?

It has 4 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the mounting type?

Through-hole mounting with solder termination.

What is the contact material and finish?

Contacts are phosphor bronze with a gold finish (10µin) over 50µ" nickel underplating.

What is the operating temperature range?

-55°C to 125°C.

What is the material flammability rating?

UL94 V-0.

Is the header shrouded?

No, it is unshrouded.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	15.75mm (0.620")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Size	0.025" (0.635mm) Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	-17
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Orientation	Vertical
Overall Contact Length	0.830" (21.08mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
