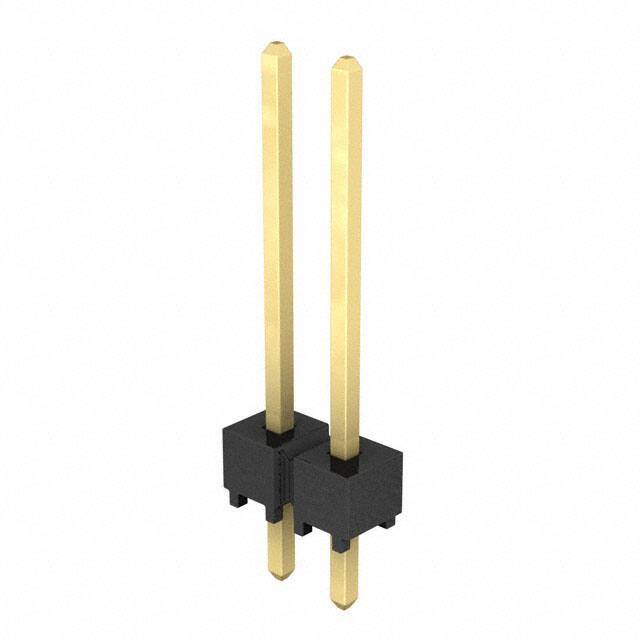

The Samtec TSW-102-15-G-S is a 2-position, single-row through hole header from the TSW series. It features a 2.54mm (0.100") pitch and unshrouded design suitable for board-to-board or cable connections. The header uses square phosphor bronze male pins with a gold contact finish (10.0µin / 0.25µm) over 50µin nickel underplate.
The insulator is made of black PBT (Polybutylene Terephthalate) with a UL94 V-0 flammability rating. The mating contact length is 13.21mm (0.520") and the overall contact length is 18.54mm (0.730"). The header is rated for 5.2A per pin (2 positions powered) when mated with an ESW socket, and 550 VAC when mated with an SSW socket. Operating temperature range is -55°C to +125°C with gold plating.
This component is packaged in bulk and is intended for through-hole soldering (lead wave only; not lead-free solderable). It is commonly used in a wide range of electronic interconnect applications requiring a reliable, standard-pitch header.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 50+ | $0.38 | $0.38 |
| 100+ | $0.32 | $0.32 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.20 | $0.20 |
| 2,000+ | $0.19 | $0.19 |
| 5,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 2 positions in a single row.
5.2A per pin with 2 positions powered when mated with an ESW socket.
550 VAC when mated with an SSW socket.
Through hole with solder termination.
-55°C to +125°C with gold plating.
No, the TSW series is not lead-free solderable; it is intended for lead wave soldering only.
