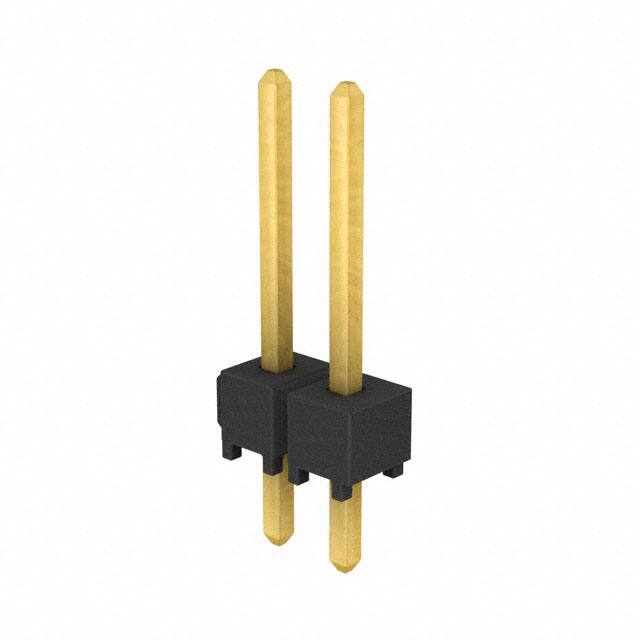

The Samtec TSW-102-14-G-S is a 2-position through hole header from the TSW series. It features a single row of male pins with a 2.54mm (0.100") pitch. The header is unshrouded with a push-pull mating retention. It is designed for board-to-board or cable applications.
The contacts are made of phosphor bronze with a 10µin gold plating, ensuring reliable electrical connections. The insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 125°C with gold plating. The header is rated for 5.7A per pin (typical, with 2 positions powered) and 550 VAC mated with a suitable socket.
The TSW-102-14-G-S has a through hole mounting style with solder termination. It is supplied in bulk packaging. The overall contact length is 0.530" (13.46mm) with a contact length of 0.320" (8.13mm) and a tail length of 0.110". This part is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 250+ | $0.27 | $0.27 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.23 | $0.23 |
| 2,500+ | $0.19 | $0.19 |
| 25,000+ | $0.18 | $0.18 |
| 50,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
2.54mm (0.100").
5.7A typical per pin with 2 positions powered.
550 VAC mated with SSW socket.
Through hole.
-55°C to 125°C.
10µin Gold.
