Mfr Part #:

TSW-102-08-T-S-RA

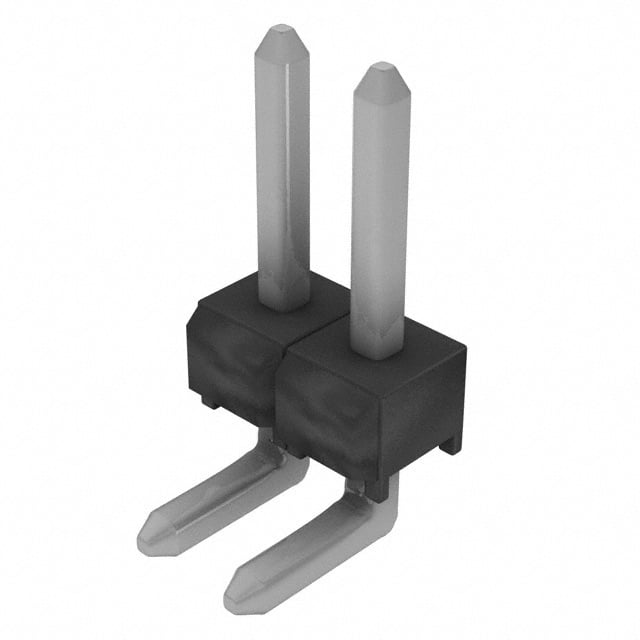

Samtec TSW-102-08-T-S-RA is a 2 position, single row, right angle through hole header with 2.54mm pitch and tin plated phosphor bronze contacts.

✓ Total Stock: 200 pcs

$ Price Range: $0.06 - $0.22

TSW-102-08-T-S-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	200 pcs On Request	200 pcs	On Request	1	On Request	On Request	708	On Request	On Request

TSW-102-08-T-S-RA Description

Short technical summary and product information.

The Samtec TSW-102-08-T-S-RA is a 2-position, single row, right angle through hole header from the TSW series. It features a 2.54mm (0.100") pitch and unshrouded design with square tin-plated phosphor bronze pins. The insulator is black PBT with a UL94 V-0 flammability rating.

This header is rated for operating temperatures from -55°C to +105°C. When mated with a Samtec SSW socket, typical current rating is 5.7A per pin (2 positions powered) and typical voltage rating is 550 VAC. The contact post length is 5.84mm (0.230") and tail length is 2.286mm (0.090").

Designed for board-to-board or cable applications, this header uses push-pull fastening and is terminated by solder. It is packaged in bulk and is not lead-free solderable (lead wave only).

TSW-102-08-T-S-RA Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-102-08-T-S-RA .100" (2.54mm) Pitch Through Hole Right Angle Header, 2 Positions, 1 Row, Tin Plating

Subcategory: Unshrouded Right Angle Header

TSW-102-08-T-S-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-102-08-T-S-RA Estimated Pricing

Qty	Low	High
1+	$0.22	$0.22
50+	$0.20	$0.20
100+	$0.16	$0.16
500+	$0.14	$0.14
1,000+	$0.10	$0.10
2,000+	$0.09	$0.09
5,000+	$0.06	$0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-102-08-T-S-RA Features

2 position single row right angle header.
2.54mm (0.100") pitch unshrouded design.
Tin plated phosphor bronze square pins.
Rated for 5.7A per pin with SSW socket.
Operating temperature -55°C to +105°C.

TSW-102-08-T-S-RA Applications

Board-to-board interconnect applications.
Cable-to-board connection systems.
General purpose signal routing.
Prototyping and test fixtures.

TSW-102-08-T-S-RA FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-102-08-T-S-RA have?

It has 2 positions in a single row.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the current rating of the TSW-102-08-T-S-RA?

Typical current rating is 5.7A per pin when mated with an SSW socket (2 positions powered).

What is the voltage rating?

Typical voltage rating is 550 VAC when mated with an SSW socket.

What is the mounting type of this header?

Through hole, right angle.

What is the operating temperature range?

-55°C to +105°C.

What is the contact material and finish?

Phosphor bronze contact material with tin plating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.02mm (0.119")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Right Angle
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
