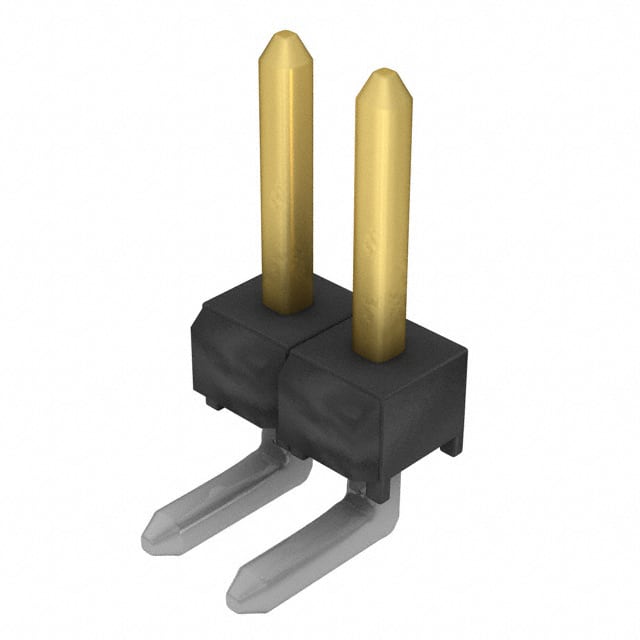

TSW-102-08-L-S-RA 2 position 2.54mm pitch right angle through-hole male pin header from Samtec's TSW series. Features gold contact finish and phosphor bronze contacts.
Mfr Part #:

TSW-102-08-L-S-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
2 position 2.54mm pitch right angle through-hole male pin header from Samtec's TSW series. Features gold contact finish and phosphor bronze contacts.
✓ Total Stock: 740 pcs
$ Price Range: $0.12 - $0.28

TSW-102-08-L-S-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
740 pcs
On Request
740 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-102-08-L-S-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-102-08-L-S-RA Description

Short technical summary and product information.

This is a 2-position single-row male pin header from Samtec's TSW series. It features a 2.54mm (0.100") pitch and right-angle through-hole mounting. The contacts are square phosphor bronze pins with a 10µin gold finish.



The header is unshrouded with a push-pull fastening type. Insulation is black PBT with UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C.



Designed for board-to-board or cable applications, this header mates with various Samtec socket strips. The contact length (post) is 5.84mm. Packaging is bulk.

TSW-102-08-L-S-RA Quick Information

Product Type: Header, Male Pins
Series: TSW
Canonical Name: Samtec TSW-102-08-L-S-RA 2 Position 2.54mm Right Angle Male Pin Header
Subcategory: Male Pins

TSW-102-08-L-S-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-102-08-L-S-RA Estimated Pricing

Qty Low High
1+ $0.28 $0.28
250+ $0.21 $0.21
25,000+ $0.14 $0.14
50,000+ $0.12 $0.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-102-08-L-S-RA Features

  • 2 position single row right angle header.
  • 2.54mm (0.100") pitch for standard spacing.
  • Gold plated phosphor bronze contacts.
  • Through-hole mounting for secure PCB attachment.
  • Operating temperature range -55°C to 125°C.

TSW-102-08-L-S-RA Applications

  • Board-to-board interconnection in compact designs.
  • Cable-to-board connections with IDC socket assemblies.
  • General purpose signal routing in electronic assemblies.

TSW-102-08-L-S-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSW-102-08-L-S-RA have?

2 positions, all loaded.

What is the pitch of the TSW-102-08-L-S-RA?

2.54mm (0.100").

What is the mounting type?

Through hole, right angle.

What is the contact finish?

Gold, 10µin thickness.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material?

Polybutylene Terephthalate (PBT), black, UL94 V-0 rated.

What is the fastening type?

Push-pull, unshrouded.
