Mfr Part #:

TSW-102-08-G-D

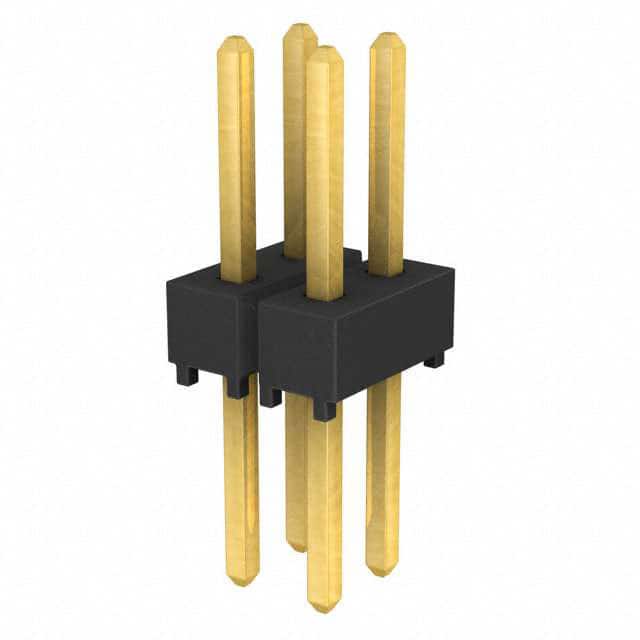

CONN HEADER VERT 4POS 2.54MM. This through-hole header features 4 positions in 2 rows, 2.54mm pitch, gold contact finish, and vertical orientation.

✓ Total Stock: 541 pcs

$ Price Range: $0.32 - $0.87

TSW-102-08-G-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	541 pcs On Request	541 pcs	On Request	1	On Request	On Request	NO DC	On Request	On Request

TSW-102-08-G-D Description

Short technical summary and product information.

The TSW-102-08-G-D is a 4-position, 2-row through-hole header from Samtec's TSW series. It features male pin contacts with a 2.54mm (0.100") pitch and a square post contact system of 0.025" (0.635mm) side. The contacts are made of phosphor bronze with a gold plating of 10.0µin (0.25µm). The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The header is unshrouded with a push-pull fastening mechanism, suitable for board-to-board or cable applications. The mating contact length is 5.84mm (0.230"), and the overall contact length is 13.46mm (0.530"). The mounting type is through hole with solder termination, and the orientation is vertical. The operating temperature range is -55°C to 125°C. Packaging is bulk. This header is designed for general-purpose interconnect applications requiring reliable, gold-plated connections in 2.54mm pitch systems.

TSW-102-08-G-D Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW Series 4-Position 2.54mm Pitch Through Hole Header, Vertical, Unshrouded, Male Pins

Subcategory: Male Pins

TSW-102-08-G-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-102-08-G-D Estimated Pricing

Qty	Low	High
1+	$0.87	$0.87
50+	$0.76	$0.76
100+	$0.66	$0.66
500+	$0.64	$0.64
1,000+	$0.38	$0.38
2,000+	$0.34	$0.34
5,000+	$0.33	$0.33
25,000+	$0.32	$0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-102-08-G-D Features

4-position, 2-row through-hole header.
2.54mm (0.100") centerline pitch.
Gold (10µin) contact finish for reliability.
Unshrouded push-pull design for easy mating.
UL94 V-0 rated PBT insulation.

TSW-102-08-G-D Applications

Board-to-board connections in electronic assemblies.
Cable-to-board interfaces using IDC socket cables.
General-purpose prototyping and interconnect applications.
Vertical stacking of PCBs with 2.54mm spacing.

TSW-102-08-G-D FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

4 positions

What is the pitch?

2.54mm (0.100")

What is the mounting type?

Through hole

What is the operating temperature range?

-55°C to 125°C

What is the contact finish?

Gold, 10.0µin (0.25µm)

What is the insulation material?

Polybutylene Terephthalate (PBT), UL94 V-0

How many rows does it have?

2 rows

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Straight
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Orientation	Vertical
Overall Contact Length	0.530" (13.46mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
