Mfr Part #:

TSW-101-07-S-D

Available from 1 distributors

Mfr Name: Samtec Inc.

2 Position, 2 Row, 2.54mm Pitch Through Hole Header with Phosphor Bronze contacts, Gold/Tin plating.

✓ Total Stock: 192 pcs

$ Price Range: $0.17 - $0.54

TSW-101-07-S-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	192 pcs On Request	192 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSW-101-07-S-D Description

Short technical summary and product information.

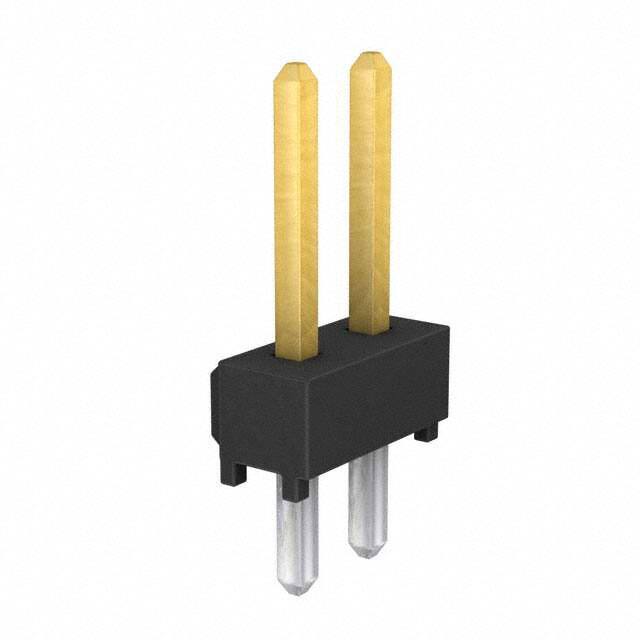

The Samtec TSW-101-07-S-D is a 2 position, 2 row through hole header from the TSW series, designed for 0.100 inch (2.54mm) pitch applications. It features unshrouded square pins with a post length of 0.230 inch (5.84mm) and an overall length of 0.430 inch (10.92mm). The contacts are made of phosphor bronze with a 30µin gold/tin finish over 50µin nickel, providing reliable electrical performance.

The insulator is molded from black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. This header supports an operating temperature range of -55°C to 125°C. When mated with a compatible socket strip like the SSW series, it can carry up to 5.7A per pin and withstand 550 VAC.

Mounting is through hole with solder termination, making it suitable for board-to-board or cable-to-board connections. The TSW-101-07-S-D is not designed for lead-free soldering processes and should be used with lead wave soldering only.

TSW-101-07-S-D Quick Information

Product Type: Header, Male Pins

Series: TSW

Canonical Name: Samtec TSW-101-07-S-D 2 Position 2.54mm Pitch Through Hole Header

Subcategory: Unshrouded

TSW-101-07-S-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

TSW-101-07-S-D Estimated Pricing

Qty	Low	High
1+	$0.54	$0.54
50+	$0.51	$0.51
100+	$0.39	$0.39
1,000+	$0.21	$0.21
5,000+	$0.17	$0.17
10,000+	$0.17	$0.17
25,000+	$0.17	$0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-101-07-S-D Features

2 position, 2 row through hole header.
0.100 inch (2.54mm) pitch spacing.
Gold/Tin plated phosphor bronze contacts.
Operating temperature range -55°C to 125°C.
UL94 V-0 rated PBT insulator.

TSW-101-07-S-D Applications

Board-to-board interconnections.
Cable-to-board connections using socket strips.
Prototyping and general purpose wiring.
Industrial control systems.

TSW-101-07-S-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSW-101-07-S-D have?

2 positions, all loaded.

What is the pitch of this header?

2.54mm (0.100 inch).

What is the current rating per pin?

5.7A typical when mated with SSW socket strip.

What is the voltage rating?

550 VAC maximum when mated with SSW socket strip.

What mounting type does this connector use?

Through hole, solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze contacts with 30µin Gold/Tin plating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold/Tin (30µin Au)
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Vertical
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.430" (10.92mm)
Pitch	0.100" (2.54 mm)
Row Spacing	0.100" (2.54 mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Voltage Rating	550 VAC
