TSU6721YFFR The Texas Instruments TSU6721YFFR is a USB 2.0 switch designed for special purpose analog applications. It offers a 480 Mbps USB speed and operates within a -40°C to 85°C temperature range.
Mfr Part #:

TSU6721YFFR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TSU6721YFFR is a USB 2.0 switch designed for special purpose analog applications. It offers a 480 Mbps USB speed and operates within a -40°C to 85°C temperature range.
✓ Total Stock: 62,495 pcs
$ Price Range: $0.51

TSU6721YFFR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
56,500 pcs
On Request
56500 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
5,995 pcs
On Request
5995 pcs On Request 1 On Request On Request 1501+5 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSU6721YFFR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Configuration
Features
Mounting Type
Number of Channels
Operating Temperature
Supplier Device Package
Supplier Package
Supply Current
Switch Circuit
Voltage
View Similar Products (0)

TSU6721YFFR Description

Short technical summary and product information.

The TSU6721YFFR from Texas Instruments is a specialized analog switch designed for USB 2.0 applications. This component supports a USB speed of up to 480 Mbps and features 2 channels with a typical on-resistance of 6000 mΩ.



It operates within an input/output voltage range of -1.5V to 3.6V and has a configuration of 3:1. The device is rated for a wide operating temperature range of -40°C to 85°C, making it suitable for various environmental conditions. Key features include I2C and UART interfaces, charger detection, and support for negative rail audio signals.

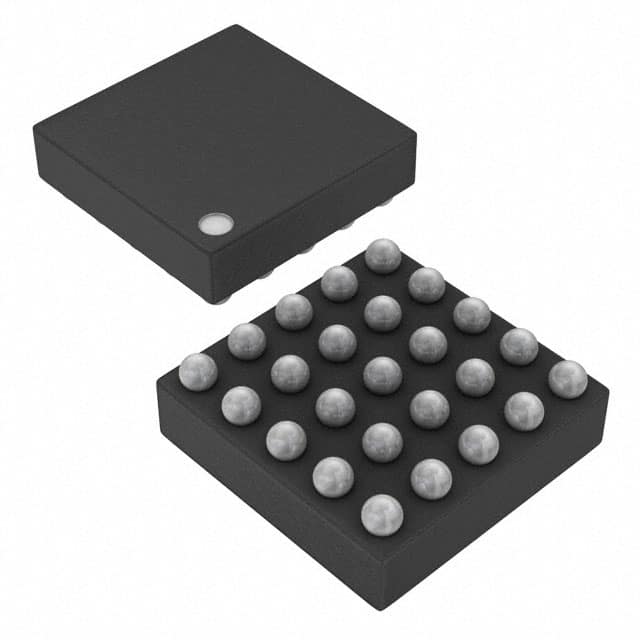

The TSU6721YFFR is available in a 25-DSBGA package and is designed for surface mount applications. Its switch matrix supports USB and UART, with additional capabilities like ID bypass, VBUS to MIC switching, and load switch functionality with over-voltage protection and programmable overcurrent limiting.



This USB switch is ideal for applications requiring flexible signal routing and management, including audio headsets, docking stations, and USB charging functionalities. Its robust feature set and reliable performance make it a valuable component for modern electronic designs.

TSU6721YFFR Quick Information

Product Type: USB Switch
Canonical Name: TSU6721YFFR USB 2.0 Switch
Subcategory: Special Purpose

TSU6721YFFR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSU6721YFFR Estimated Pricing

Qty Low High
1+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSU6721YFFR Features

  • Supports USB 2.0 high-speed data transfer.
  • Features 2 channels with 6000 mΩ typical on-resistance.
  • Operates from -40°C to 85°C temperature range.
  • Includes I2C and UART interface support.
  • Offers charger detection and negative rail audio capability.

TSU6721YFFR Applications

  • Ideal for USB audio and UART applications.
  • Supports charger detection and OTG functionality.
  • Used in multimedia and docking station designs.
  • Enables flexible signal routing in portable devices.

TSU6721YFFR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TSU6721YFFR?

-40°C to 85°C

What package type is the TSU6721YFFR available in?

25-UFBGA, DSBGA

What is the USB speed supported by the TSU6721YFFR?

480 Mbps

How many channels does the TSU6721YFFR have?

2

What is the typical on-resistance of the TSU6721YFFR?

6000 mΩ

Does the TSU6721YFFR support I2C and UART interfaces?

Yes, it includes I2C and UART interfaces.
