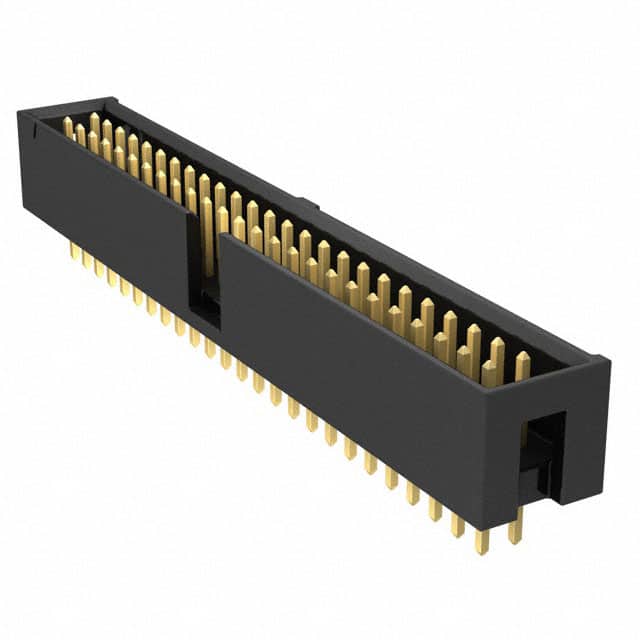

TST-125-01-G-D Samtec TST-125-01-G-D is a 50-position, 2-row shrouded header connector with 2.54mm pitch, through-hole mounting, and gold contact finish.
Mfr Part #:

TST-125-01-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TST-125-01-G-D is a 50-position, 2-row shrouded header connector with 2.54mm pitch, through-hole mounting, and gold contact finish.
✓ Total Stock: 155 pcs
$ Price Range: $4.14 - $6.57

TST-125-01-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
155 pcs
On Request
155 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TST-125-01-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Prop 65
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TST-125-01-G-D Description

Short technical summary and product information.

The TST-125-01-G-D is a 50-position, double-row shrouded header connector from Samtec's TST series. It features a 2.54mm (0.100") pitch and is designed for board-to-cable/wire applications. The header is through-hole mounted with solder termination and has a push-pull fastening type.



The contacts are made of phosphor bronze with a gold plating thickness of 10µin (0.25µm). The connector is rated for 3.4A per contact and can withstand 425 VAC or 600 VDC. It has an insulation resistance of 5000 MΩ minimum and operates over a temperature range of -55°C to 125°C.



The insulator is black glass filled polyester with a UL94 V-0 flammability rating. The shrouded design includes a keying slot for proper alignment. This header mates with Samtec IDSD and HCSD IDC socket assemblies.

TST-125-01-G-D Quick Information

Product Type: Shrouded Header Connector
Series: TST
Canonical Name: Shrouded Header, 50 Positions, 2.54mm Pitch, Through Hole, Gold Plating
Subcategory: Shrouded Header

TST-125-01-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: Compliant

TST-125-01-G-D Estimated Pricing

Qty Low High
1+ $6.57 $6.57
25+ $6.56 $6.56
50+ $6.55 $6.55
500+ $5.17 $5.17
1,000+ $4.92 $4.92
2,500+ $4.14 $4.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

TST-125-01-G-D Features

  • 50-position dual-row shrouded header.
  • 2.54mm (0.100") pitch spacing.
  • Gold-plated phosphor bronze contacts.
  • Through-hole solder termination.
  • Rated for 3.4A per contact.

TST-125-01-G-D Applications

  • Board-to-cable/wire connections.
  • IDC cable assembly mating.
  • Industrial control systems.
  • Data communication equipment.

TST-125-01-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

50 positions.

What is the pitch?

2.54mm (0.100")

What is the current rating?

3.4A per contact.

What is the voltage rating?

425 VAC / 600 VDC.

What is the mounting type?

Through Hole.

What is the contact finish?

Gold, 10µin (0.25µm).

What is the operating temperature range?

-55°C to +125°C.
