| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

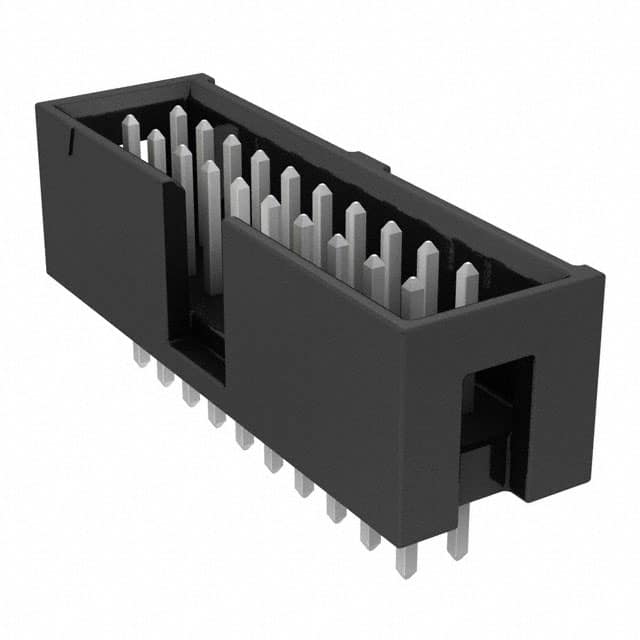

The TST-110-01-T-D is a 20 position, dual row, shrouded IDC header connector from Samtec's TST series. It features a 2.54mm (0.100") pitch and is designed for board-to-cable/wire applications. The connector uses through hole mounting with solder termination and has a 4-wall shrouded design with a keying slot for polarization.
The header is rated for 3.4A per contact and has a voltage rating of 425 VAC / 600 VDC. It offers an insulation resistance of 5000 MΩ minimum and operates over a temperature range of -55°C to 105°C with tin plating. The contacts are made of phosphor bronze with tin finish, and the insulator is black glass filled PBT with a UL94 V-0 flammability rating.
This connector is packaged in bulk and is suitable for use with Samtec IDSD and HCSD mating connector series. It is not lead-free solderable and requires lead wave soldering. The part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.99 | $1.99 |
| 50+ | $1.67 | $1.67 |
| 100+ | $1.42 | $1.42 |
| 500+ | $1.41 | $1.41 |
| 1,000+ | $1.09 | $1.09 |
| 2,000+ | $1.02 | $1.02 |
| 5,000+ | $0.86 | $0.86 |
| 10,000+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
3.4A per contact.
425 VAC / 600 VDC.
Through hole.
-55°C to 105°C.
Yes, RoHS3 compliant.
