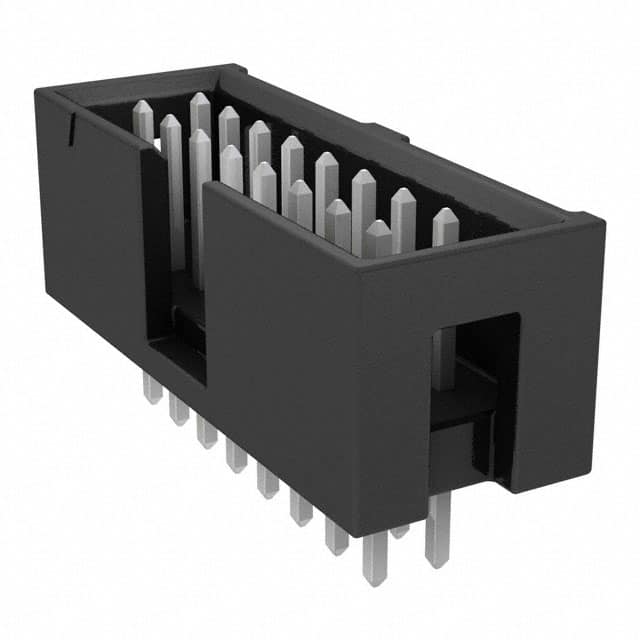

TST-108-01-T-D The Samtec Inc. TST-108-01-T-D is a shrouded header with 16 positions and 2 rows. It features a 2.54mm pitch and through hole mounting.
Mfr Part #:

TST-108-01-T-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. TST-108-01-T-D is a shrouded header with 16 positions and 2 rows. It features a 2.54mm pitch and through hole mounting.
✓ Total Stock: 563 pcs
$ Price Range: $0.77

TST-108-01-T-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
563 pcs
On Request
563 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TST-108-01-T-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Failure Rate
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TST-108-01-T-D Description

Short technical summary and product information.

This Samtec Inc. TST-108-01-T-D is a shrouded header designed for board-to-cable/wire applications. It offers 16 positions across 2 rows with a standard 2.54mm pitch.



The header features a through-hole mounting type and a tin contact finish. The insulation material is Polybutylene Terephthalate (PBT), Glass Filled, in black, with a UL94 V-0 flammability rating. Key mechanical specifications include an insulation height of 8.89mm and a contact length of 6.35mm.



Electrically, the connector is rated for 3.4A per contact and operates within a temperature range of -55°C to 105°C. It also boasts an insulation resistance of 5000 MΩ min and a voltage rating of 425 VAC/600 VDC.



Additional features include a keying slot and a push-pull fastening type. The TST series is designed for reliable connections in various electronic systems.

TST-108-01-T-D Quick Information

Product Type: Header
Series: TST
Canonical Name: Samtec Inc. TST Series Shrouded Header, 16 Positions, 2 Rows, Through Hole Mount, Tin Contact Finish
Subcategory: Male Pins

TST-108-01-T-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TST-108-01-T-D Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TST-108-01-T-D Features

  • 16 positions in 2 rows.
  • 2.54mm pitch for compact design.
  • Through hole mounting for secure connection.
  • Tin contact finish for durability.
  • Rated for -55°C to 105°C operation.

TST-108-01-T-D Applications

  • Ideal for board-to-cable connections.
  • Suitable for industrial automation systems.
  • Used in telecommunications equipment.
  • Applicable in consumer electronics.
  • Reliable for test and measurement devices.

TST-108-01-T-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TST-108-01-T-D have?

16 positions.

What is the pitch of the TST-108-01-T-D?

2.54mm (0.100 inches).

What is the current rating per contact?

3.4A per contact.

What is the voltage rating?

425 VAC or 600 VDC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

Does the header meet UL94 V-0?

Yes, the insulation material is rated UL94 V-0.
