| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

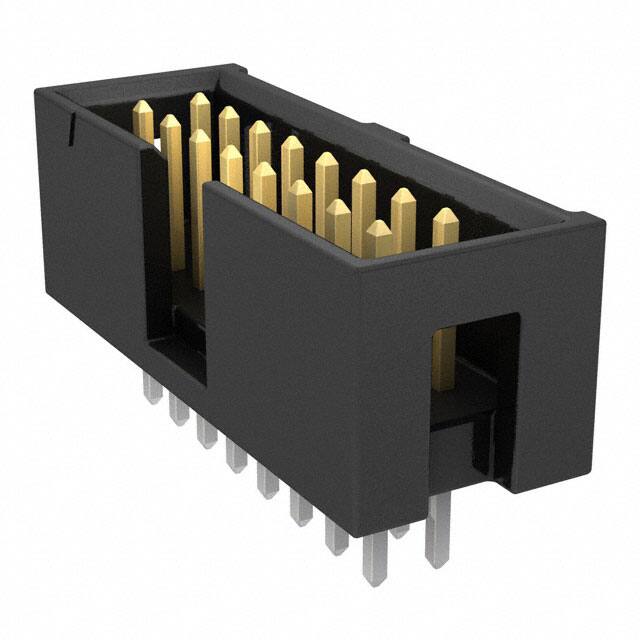

The TST-108-01-S-D is a 16-position, 2-row shrouded header connector from Samtec's TST series. It features a 2.54mm (0.100") pitch and through-hole mounting with solder termination. The connector is designed for board-to-cable/wire applications and includes a 4-wall shrouding with keying slot for polarization.
Electrical specifications include a current rating of 3.4A per contact, voltage ratings of 425 VAC and 600 VDC, and a minimum insulation resistance of 5000 MΩ. The operating temperature range is -55°C to +125°C. The contacts are made of phosphor bronze with 30µin gold plating on the mating area and matte tin on the tail.
The insulator is black glass-filled PBT (polybutylene terephthalate) with a UL94 V-0 flammability rating. The connector is packaged in bulk and is RoHS, REACH, and halogen-free compliant. It mates with Samtec IDSD, HCSD, and SMSD series IDC socket assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.26 | $3.26 |
| 50+ | $3.03 | $3.03 |
| 100+ | $3.01 | $3.01 |
| 500+ | $2.76 | $2.76 |
| 1,000+ | $2.62 | $2.62 |
| 2,000+ | $2.36 | $2.36 |
| 5,000+ | $1.96 | $1.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54mm (0.100").
3.4A per contact.
425 VAC and 600 VDC.
Through hole.
-55°C to +125°C.
30µin gold on mating area, matte tin on tail.
