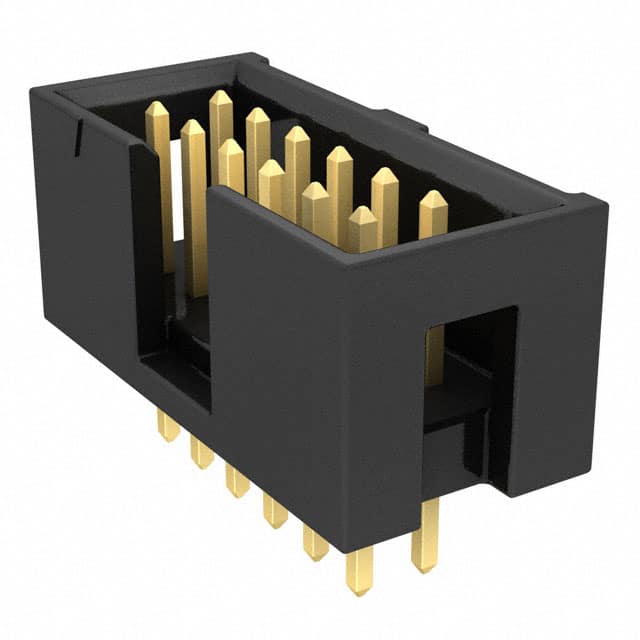

TST-106-01-G-D Samtec TST-106-01-G-D is a 12-position, 2-row through-hole shrouded header with a 2.54mm pitch. It mates with IDSD, HCSD, and SMSD series IDC socket assemblies.
Mfr Part #:

TST-106-01-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TST-106-01-G-D is a 12-position, 2-row through-hole shrouded header with a 2.54mm pitch. It mates with IDSD, HCSD, and SMSD series IDC socket assemblies.
✓ Total Stock: 22 pcs
$ Price Range: $1.59 - $3.28

TST-106-01-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TST-106-01-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TST-106-01-G-D Description

Short technical summary and product information.

The Samtec TST-106-01-G-D is a .100in (2.54mm) pitch shrouded IDC header connector designed for board-to-cable and board-to-wire applications. It features 12 positions arranged in 2 rows, with a through-hole mounting style and solder termination. The connector uses a black glass-filled polyester insulator and phosphor bronze terminals with gold flash on the post and matte tin on the tail.



The TST series offers design flexibility with multiple lead styles, plating options, and pin configurations. This double-row vertical header includes a polarization notch for proper mating alignment. The operating temperature range is -55°C to +125°C with gold plating and -55°C to +105°C with tin plating. Voltage rating is 425 VAC / 600 VDC.



The part mates with Samtec IDSD, HCSD, and SMSD series socket connectors. Bulk packaging is standard. The product is RoHS compliant and UL recognized under file E111594.

TST-106-01-G-D Quick Information

Product Type: Shrouded Header Connector
Series: TST
Canonical Name: TST-106-01-G-D - .100in/2.54mm Shrouded IDC Header Connector, 12 Pin, 2 Row, Through Hole, 10µin Gold/Flash, .115in Tail
Subcategory: Shrouded IDC Header

TST-106-01-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TST-106-01-G-D Estimated Pricing

Qty Low High
1+ $3.28 $3.28
50+ $3.21 $3.21
100+ $2.72 $2.72
500+ $2.42 $2.42
1,000+ $1.98 $1.98
2,000+ $1.89 $1.89
5,000+ $1.59 $1.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

TST-106-01-G-D Features

  • 12 positions in 2 rows (2.54mm pitch).
  • Through-hole vertical mounting with solder termination.
  • Gold flash on post, matte tin on tail.
  • Shrouded design with polarization notch.
  • UL recognized and RoHS compliant.

TST-106-01-G-D Applications

  • Board-to-cable IDC interconnect systems.
  • General purpose signal interconnects in electronics.
  • Prototyping and production wire-to-board connections.

TST-106-01-G-D FAQs

3 frequently asked questions generated from this part’s specifications.
How many positions does the TST-106-01-G-D have?

12 positions in a 2-row configuration.

What is the pitch of this connector?

2.54mm (0.100").

What is the mounting type for this part?

Through hole.
