| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
390 pcs
|
390 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

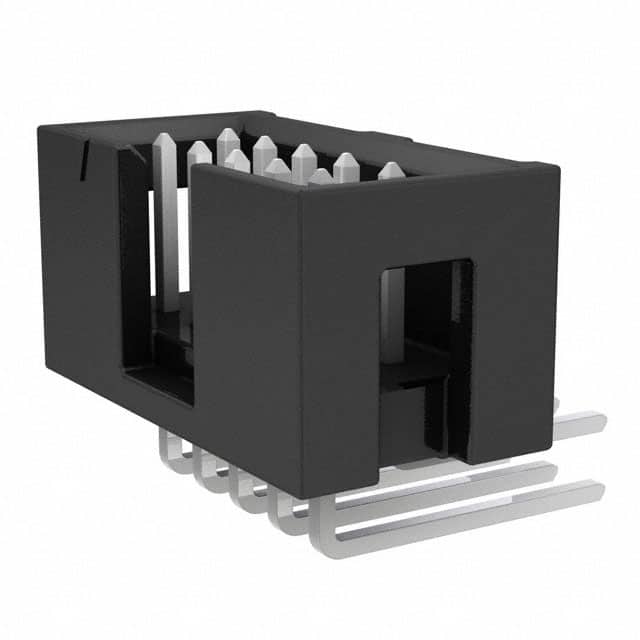

The Samtec TST-105-04-T-D-RA is a 10 position, 2 row, 2.54mm pitch shrouded header from the TST series. It features male square pins with tin plating over phosphor bronze contacts. The connector is designed for board to cable/wire applications and uses a push-pull fastening mechanism with a keying slot for polarization. The insulation is black glass filled PBT rated UL94 V-0. This right angle through hole version has a 6.35mm contact length and 9.27mm insulation height. It is rated for 3.4A per contact and 425 VAC/600 VDC. Operating temperature range is -55°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.83 | $1.83 |
| 52+ | $1.82 | $1.82 |
| 104+ | $1.60 | $1.60 |
| 520+ | $1.52 | $1.52 |
| 1,014+ | $1.21 | $1.21 |
| 2,002+ | $1.12 | $1.12 |
| 5,018+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100").
3.4A per contact.
425 VAC / 600 VDC.
Through hole, right angle.
-55°C to +105°C.
Black glass filled PBT, UL94 V-0.
