| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

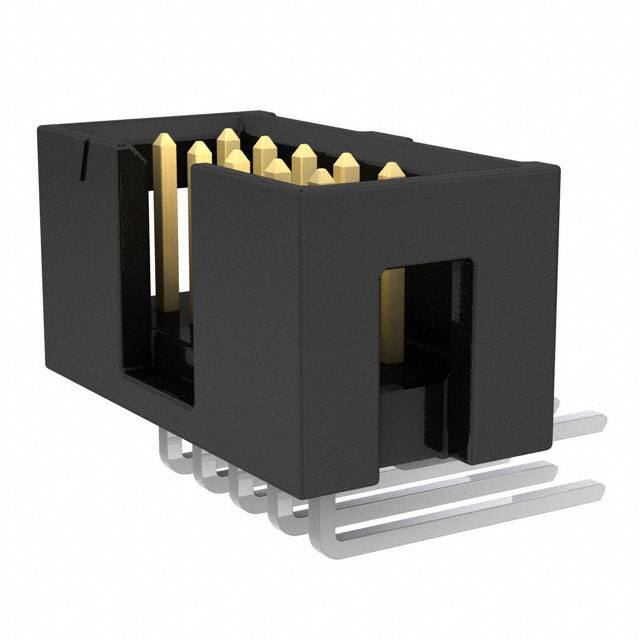

The Samtec TST-105-04-S-D-RA is a 10 position, 2 row shrouded header from the TST series, featuring a 2.54mm pitch and 2.54mm row spacing. It is designed for through hole right angle mounting with solder termination, making it suitable for board-to-cable/wire applications.
The connector uses phosphor bronze contacts with a 30µin Gold/Tin finish and a glass filled PBT insulator rated UL94 V-0. It is rated for 3.4A per contact and 425 VAC / 600 VDC, with an operating temperature range of -55°C to +125°C.
The header is fully shrouded with 4 walls and includes a keying slot for polarization. It is packaged in tubes of 26 pieces and mates with Samtec IDSD and HCSD IDC socket assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $4.00 |
| 520+ | $3.30 | $3.30 |
| 1,014+ | $3.14 | $3.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 10 positions in 2 rows.
The current rating is 3.4A per contact.
The voltage rating is 425 VAC / 600 VDC.
It is through hole, right angle mounting.
The operating temperature range is -55°C to +125°C.
The contact finish is 30µin Gold / Matte Tin.
