TST-105-01-L-D Samtec TST-105-01-L-D is a 10 position, 2 row, 2.54mm pitch shrouded header connector with through hole termination and 10µin gold on post, tin on tail contact finish.
Mfr Part #:

TST-105-01-L-D

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TST-105-01-L-D is a 10 position, 2 row, 2.54mm pitch shrouded header connector with through hole termination and 10µin gold on post, tin on tail contact finish.
✓ Total Stock: 1,506 pcs
$ Price Range: $1.13 - $2.69

TST-105-01-L-D Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,500 pcs
On Request
1500 pcs On Request 1 On Request On Request 17+20+22+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TST-105-01-L-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Prop 65
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TST-105-01-L-D Description

Short technical summary and product information.

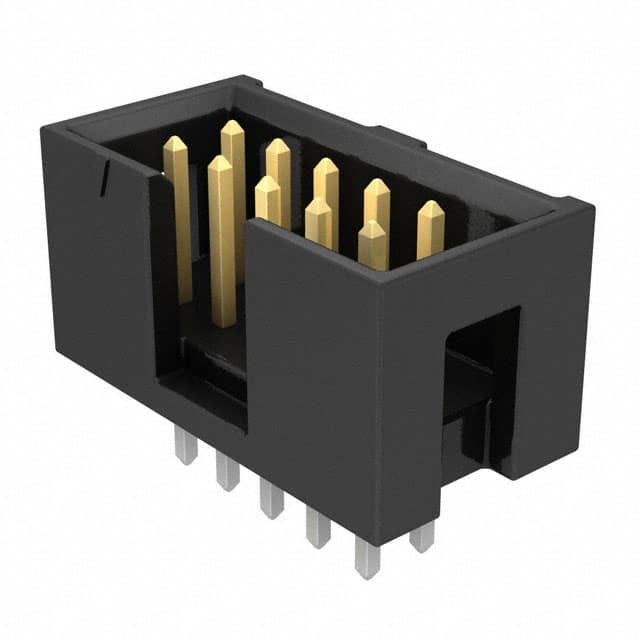

The Samtec TST-105-01-L-D is a 10 position, 2 row, 2.54mm (0.100") pitch shrouded header connector designed for board-to-cable/wire applications. It features a through hole mounting style with solder termination and a push-pull fastening type. The connector is fully shrouded with a 4-wall design and includes a keying slot for polarization.



The contacts are made of phosphor bronze with a selective plating of 10µin (0.25µm) gold on the mating post and matte tin on the tail. The insulator is black glass-filled PBT with a UL94 V-0 flammability rating. The operating temperature range is -55°C to +125°C with gold plating.



Electrical ratings include 3.4A per contact current rating, 425 VAC / 600 VDC voltage rating, and 5000 MΩ minimum insulation resistance. The connector mates with Samtec IDSD and HCSD series IDC socket assemblies.

TST-105-01-L-D Quick Information

Product Type: Shrouded Header Connector
Series: TST
Canonical Name: Samtec TST-105-01-L-D .100" (2.54mm) Pitch Shrouded IDC Header, 10 Positions, 2 Rows, Through Hole, 10µin Gold/Tin Plating
Subcategory: Shrouded Header

TST-105-01-L-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: Compliant

TST-105-01-L-D Estimated Pricing

Qty Low High
1+ $2.69 $2.69
50+ $2.19 $2.19
100+ $1.87 $1.87
2,000+ $1.48 $1.48
5,000+ $1.38 $1.38
10,000+ $1.13 $1.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

TST-105-01-L-D Features

  • 10 position 2 row 2.54mm pitch header.
  • Through hole mounting with solder termination.
  • Shrouded 4-wall design with keying slot.
  • 10µin gold on post, tin on tail plating.
  • Rated for 3.4A per contact and 425 VAC.

TST-105-01-L-D Applications

  • Board-to-cable IDC interconnect systems.
  • Used with Samtec IDSD and HCSD socket assemblies.
  • Suitable for industrial control and instrumentation.
  • General purpose signal and power distribution.

TST-105-01-L-D FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TST-105-01-L-D have?

10 positions arranged in 2 rows.

What is the pitch of this connector?

2.54mm (0.100") pitch with 2.54mm row spacing.

What is the current rating per contact?

3.4A per contact.

What is the voltage rating?

425 VAC / 600 VDC.

What is the mounting type?

Through hole with solder termination.
