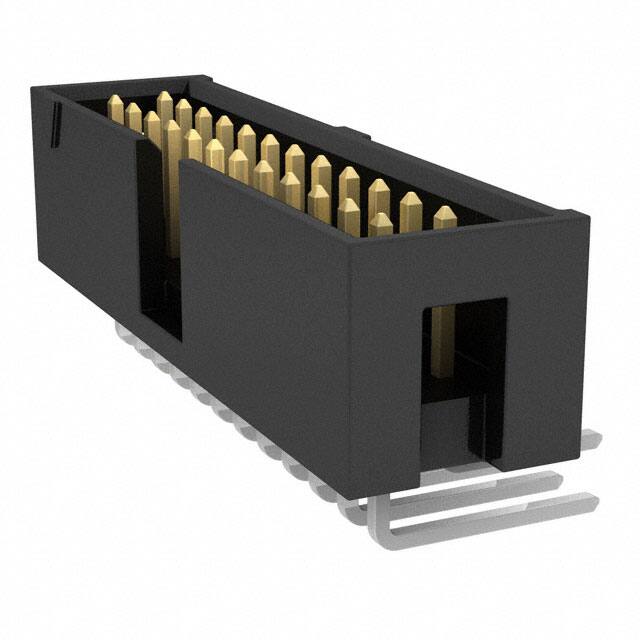

TSS-112-04-L-D-RA Right-angle shrouded header with 24 positions in 2 rows at 2.54mm pitch. Through-hole solder termination with tin-plated phosphor bronze contacts.
Mfr Part #:

TSS-112-04-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Right-angle shrouded header with 24 positions in 2 rows at 2.54mm pitch. Through-hole solder termination with tin-plated phosphor bronze contacts.
✓ Total Stock: 4 pcs
$ Price Range: $1.83 - $4.32

TSS-112-04-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSS-112-04-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Conflict Minerals
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Prop 65
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Withstanding Voltage
View Similar Products (0)

TSS-112-04-L-D-RA Description

Short technical summary and product information.

This is a 24-position shrouded header from Samtec's TSS series, designed for board-to-board or cable connections. It features a right-angle orientation and through-hole mounting.



Key specifications include a pitch of 2.54mm (0.100"), dual rows, insulation height of 9.27mm, contact length of 6.35mm, and a current rating of 3A. The insulation material is PBT (black), with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C (with gold plating) or 105°C (tin). The header is shrouded with 4 walls and includes a keying slot.



The housing is made of black glass-filled polyester, and contacts are phosphor bronze with tin finish. The part is supplied in tube packaging, standard quantity 16.



This connector is suitable for applications requiring reliable blind mating and is RoHS3 compliant, REACH unaffected, and halogen-free. It mates with Samtec SSW, SSQ, ESW, ESQ, SSM, and BCS series socket strips.

TSS-112-04-L-D-RA Quick Information

Product Type: Header, Male Pins
Series: TSS
Canonical Name: Samtec TSS-112-04-L-D-RA Shrouded Header, 24 Position, 2.54mm Pitch, Right Angle, Through Hole
Subcategory: Header, Male Pins

TSS-112-04-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable (HTSS only)

TSS-112-04-L-D-RA Estimated Pricing

Qty Low High
1+ $4.32 $4.32
48+ $3.34 $3.34
112+ $3.01 $3.01
1,008+ $2.38 $2.38
2,000+ $2.23 $2.23
5,008+ $1.83 $1.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSS-112-04-L-D-RA Features

  • Right-angle shrouded header with 24 positions.
  • Dual-row 2.54mm pitch for compact designs.
  • 3A current rating and 1000V RMS withstanding voltage.
  • Tin-plated phosphor bronze contacts for reliable connection.
  • RoHS3 compliant and halogen-free.

TSS-112-04-L-D-RA Applications

  • Ideal for board-to-board interconnection in industrial systems.
  • Suitable for cable-to-board connections requiring shrouded headers.
  • Used in applications needing keying slot for polarization.

TSS-112-04-L-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

24 positions in 2 rows.

What is the pitch of the TSS-112-04-L-D-RA?

2.54mm (0.100").

What is the current rating of this header?

3A.

What is the voltage rating?

Withstanding voltage is 1000V RMS.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 125°C with gold plating, -55°C to 105°C with tin.

What contact finish does this header have?

Tin with 10µin (0.25µm) thickness over nickel.
