Mfr Part #:

TSS-108-01-L-D

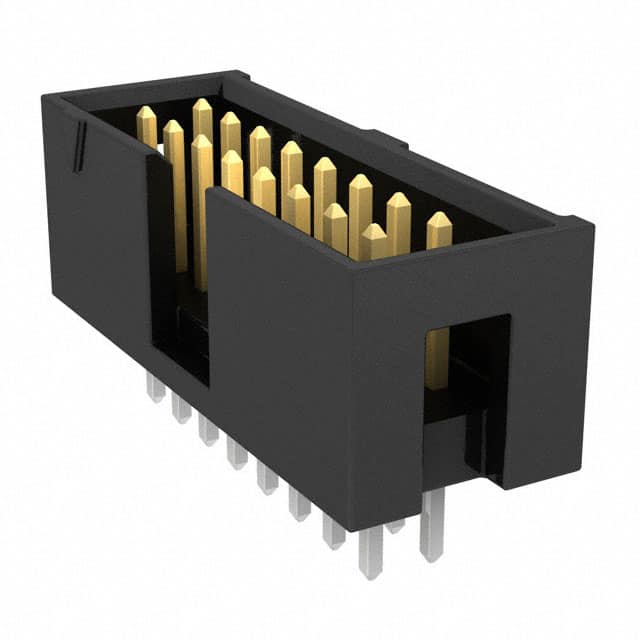

Samtec TSS-108-01-L-D is a 16-position, 2-row, 2.54mm pitch shrouded header connector with male pins and through-hole termination.

✓ Total Stock: 450 pcs

$ Price Range: $1.06 - $2.94

TSS-108-01-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	450 pcs On Request	450 pcs	On Request	1	On Request	On Request	06+	On Request	On Request

TSS-108-01-L-D Description

Short technical summary and product information.

The Samtec TSS-108-01-L-D is a 16-position, 2-row shrouded header connector with a 2.54mm pitch and row spacing. It features male square pins with a 10µin gold/tin contact finish over phosphor bronze material. The connector is fully shrouded with a 4-wall design and includes a keying slot for blind mating applications.

This through-hole connector has a push-pull fastening type and is rated for 3A current. The black PBT insulator has a UL94 V-0 flammability rating. The overall contact length is 12.19mm with a 6.35mm mating contact length and 8.89mm insulation height.

Designed for board-to-board or cable applications, this header is suitable for use in a variety of electronic interconnect systems. It is packaged in bulk and is RoHS3 and REACH compliant.

TSS-108-01-L-D Quick Information

Product Type: Shrouded Header Connector

Series: TSS

Canonical Name: Samtec TSS-108-01-L-D .100in/2.54mm Shrouded Header Connector, 16 Pin, 2 Row, Through Hole, 10µin Gold/Tin, .115in Tail

Subcategory: Shrouded Header

TSS-108-01-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected, No SVHCs

TSS-108-01-L-D Estimated Pricing

Qty	Low	High
1+	$2.94	$2.94
50+	$2.87	$2.87
100+	$2.05	$2.05
1,000+	$1.62	$1.62
2,000+	$1.52	$1.52
5,000+	$1.26	$1.26
10,000+	$1.06	$1.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSS-108-01-L-D Features

16-position 2-row 2.54mm pitch header.
Shrouded 4-wall design with keying slot.
Through-hole termination with solder tails.
Rated for 3A continuous current.
Operating temperature range -55°C to 125°C.

TSS-108-01-L-D Applications

Board-to-board interconnect applications.
Cable-to-board connection systems.
Blind mating connector assemblies.
General purpose electronic packaging.

TSS-108-01-L-D FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the TSS-108-01-L-D have?

The TSS-108-01-L-D has 16 positions in a 2-row configuration.

What is the pitch of this connector?

The pitch is 2.54mm (0.100") with the same row spacing.

What is the current rating of the TSS-108-01-L-D?

The current rating is 3A.

What is the mounting type for this header?

The mounting type is through-hole with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact finish on the TSS-108-01-L-D?

The contact finish is 10µin (0.25µm) tin over phosphor bronze.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	6.35mm (0.250")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.89mm (0.350")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.480" (12.19mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
