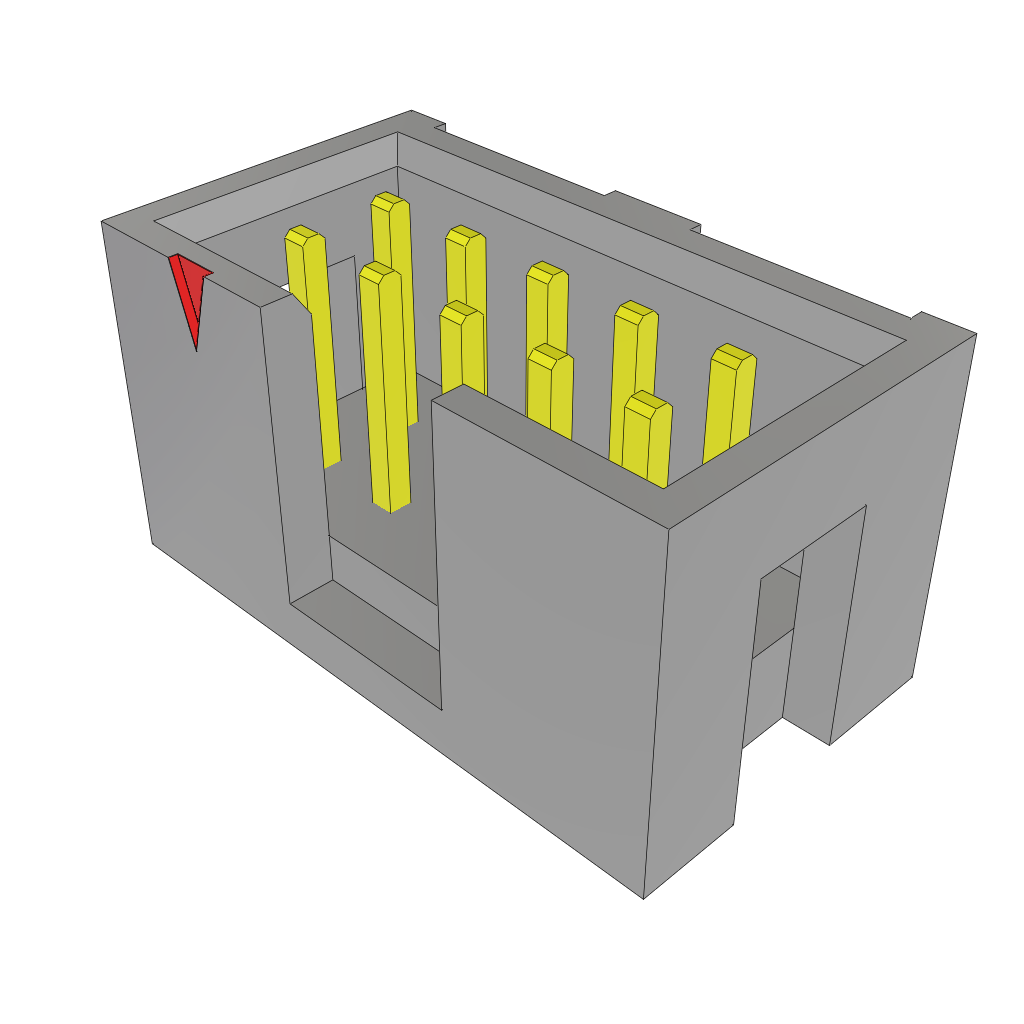

TSS-105-01-L-D-LL The Samtec TSS-105-01-L-D-LL is a 10-position, 2-row shrouded header connector with a 0.100" pitch. It features through-hole termination and 10µin gold/tin plating.
Mfr Part #:

TSS-105-01-L-D-LL

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec TSS-105-01-L-D-LL is a 10-position, 2-row shrouded header connector with a 0.100" pitch. It features through-hole termination and 10µin gold/tin plating.
✓ Total Stock: 82 pcs

TSS-105-01-L-D-LL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
82 pcs
On Request
82 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSS-105-01-L-D-LL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Lead Spacing
Lead Style
Number of Positions
Number of Rows
Orientation
Pitch
Plating
Prop 65
Tape & Reel
Termination
View Similar Products (0)

TSS-105-01-L-D-LL Description

Short technical summary and product information.

The Samtec TSS-105-01-L-D-LL is a shrouded header connector designed for blind mating applications. It offers a 0.100" (2.54 mm) pitch and a 0.025" (0.635 mm) square post contact system.



This vertical, right-angle connector has 10 positions arranged in two rows. The termination style is through-hole, with a tail length of 0.115 inches. The contacts are plated with 10µin of gold over tin, providing reliable electrical connections.



The TSS series is suitable for various applications requiring robust and reliable interconnects. The shrouded design protects the pins during mating, enhancing durability and ease of use in complex assemblies. This part is also noted as being Halogen Free.

TSS-105-01-L-D-LL Quick Information

Product Type: Header Connector
Series: TSS
Canonical Name: SMT TSS-105-01-L-D-LL .100in/2.54mm Shrouded Header Connector
Subcategory: Rectangular Connectors

TSS-105-01-L-D-LL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSS-105-01-L-D-LL Features

  • 10 positions in a 2-row configuration.
  • 0.100 inch (2.54 mm) pitch.
  • Through-hole termination style.
  • 10µin gold/tin contact plating.
  • Shrouded design for blind mating.

TSS-105-01-L-D-LL Applications

  • Shrouded header for blind mating applications.
  • Suitable for automotive electronics applications.
  • Ideal for through-hole PCB mounting.
  • Connects to mating socket strips.

TSS-105-01-L-D-LL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the Samtec TSS-105-01-L-D-LL connector?

The pitch of the TSS-105-01-L-D-LL connector is 0.100 inches (2.54 mm).

How many positions does the TSS-105-01-L-D-LL header connector have?

The TSS-105-01-L-D-LL header connector has 10 positions arranged in 2 rows.

What type of termination does the TSS-105-01-L-D-LL connector use?

The TSS-105-01-L-D-LL connector uses through-hole termination.

What is the contact plating on the TSS-105-01-L-D-LL connector?

The contact plating on the TSS-105-01-L-D-LL connector is 10µin gold/tin.

What is the Moisture Sensitivity Level (MSL) for this connector?

The Moisture Sensitivity Level (MSL) for this connector is 1 Unlimited.

Is the Samtec TSS-105-01-L-D-LL connector RoHS compliant?

The TSS-105-01-L-D-LL connector is RoHS3 Compliant.
