| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Input Voltage | |
| Operating Temperature |

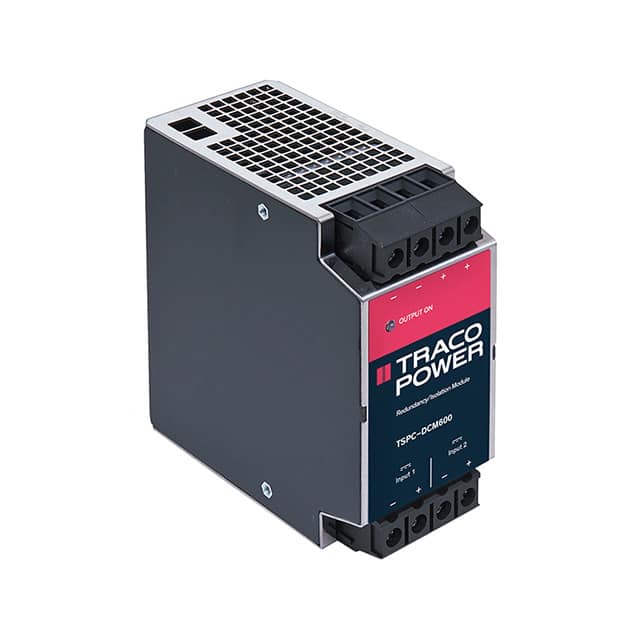

The Traco Power TSPC-DCM600 is an industrial decoupling module engineered to enhance the reliability of redundant power supply systems. This module contains two diodes that isolate a failing power supply, ensuring the second supply continues to power the load. It supports an input voltage range of 5 to 28 VDC and can handle a maximum output current of 25A. The module operates within a temperature range of -25°C to +70°C and offers an IP20 degree of protection.
Designed for use with the TSPC-DCM series, the TSPC-DCM600 facilitates hot-swapping of connected power supplies by qualified personnel. While it does not provide its own signal output, it is compatible with the DC-OK signals of the power supplies for supervision. The module has a typical voltage drop of 0.75 VDC and a maximum of 1.2 VDC across its diodes. Its calculated MTBF at +25°C is greater than 123 million hours, indicating high reliability for industrial applications.
The TSPC-DCM600 supports an input voltage range of 5 to 28 VDC.
The module can handle a maximum output current of 25A.
The TSPC-DCM600 operates within a temperature range of -25°C to +70°C.
The module has an IP20 degree of protection.
The typical voltage drop across the diodes is 0.75 VDC.
The calculated MTBF at +25°C is greater than 123 million hours.
