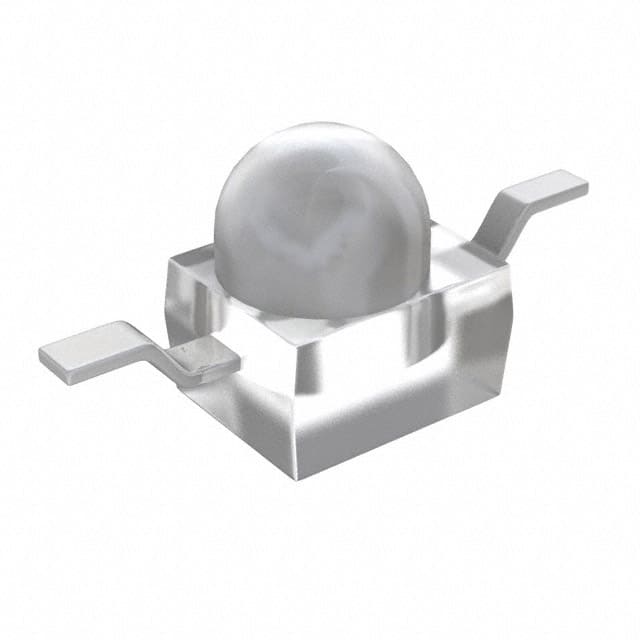

The Vishay TSMF1000 is a high-speed infrared emitting diode designed for surface mounting. It utilizes surface emitter chip technology to provide high radiant power at a peak wavelength of 890 nm.
Key electrical characteristics include a nominal forward current of 100mA, a forward voltage of 1.3V, and a peak forward current of 200mA. The diode has a viewing angle of 34° and a rise time of 15 ns, making it suitable for high-speed applications.
Packaged in a 2-SMD, Z-Bend configuration, the TSMF1000 is designed for surface mounting. It operates within an ambient temperature range of -40°C to 85°C and has a storage temperature range of -40°C to 100°C.
Applications for the TSMF1000 include IrDA compatible data transmission, miniature light barriers, photointerrupters, optical switches, control and drive circuits, and shaft encoders. Its package is designed to match with the TEMD1000 detector.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength is 890 nm.
The nominal forward current is 100 mA.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
