| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,108 pcs
|
1108 pcs | On Request | 1 | On Request | On Request | 1202+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Failure Rate | |
| Forward Voltage | |
| Height | |
| Length | |
| Mounting Type | |
| Tape & Reel |
The Taiwan Semiconductor TSM6968DCA is an N-Channel MOSFET designed for various electronic applications. It features a maximum drain-source voltage of 20V and a continuous drain current of 6.5A, making it suitable for power switching applications.
This MOSFET operates with an enhancement mode channel and has a maximum power dissipation of 1.5W. The device is packaged in an 8-pin TSSOP with surface mount capability. Key electrical characteristics include a maximum drain-source resistance of 40mΩ and a typical gate charge of 20nC at Vgs.
The operating temperature range for the TSM6968DCA is from -55°C to 150°C, ensuring reliable performance in diverse environmental conditions. It also includes ESD protection rated at 2KV. The transistor configuration is common drain, and it contains two elements per chip.
This component is ideal for designs requiring efficient power management and switching. Its specifications make it a versatile choice for engineers working on power supply circuits, motor control, and other related electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous drain current is 6.5A.
The maximum drain-source voltage is 20V.

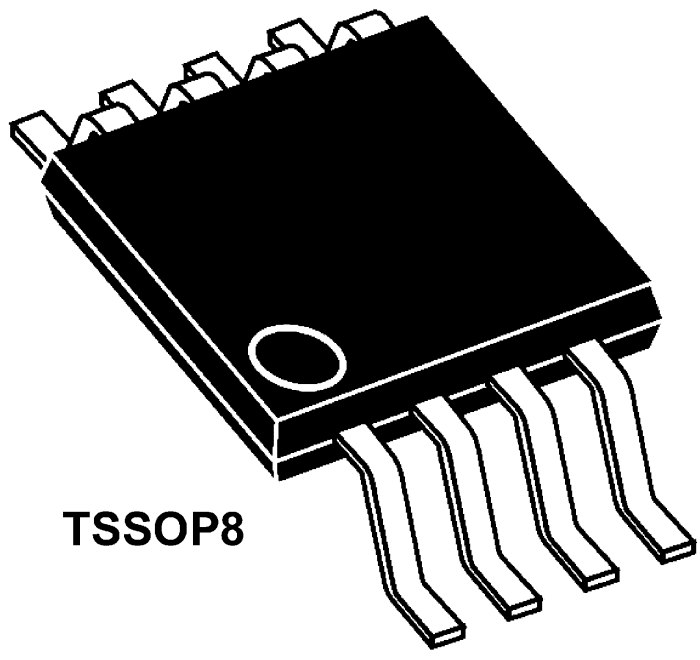

The TSM6968DCA is in an 8-pin TSSOP package.
The operating temperature range is -55°C to 150°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
