Mfr Part #:

TSM2N7002AKDCU6 RFG

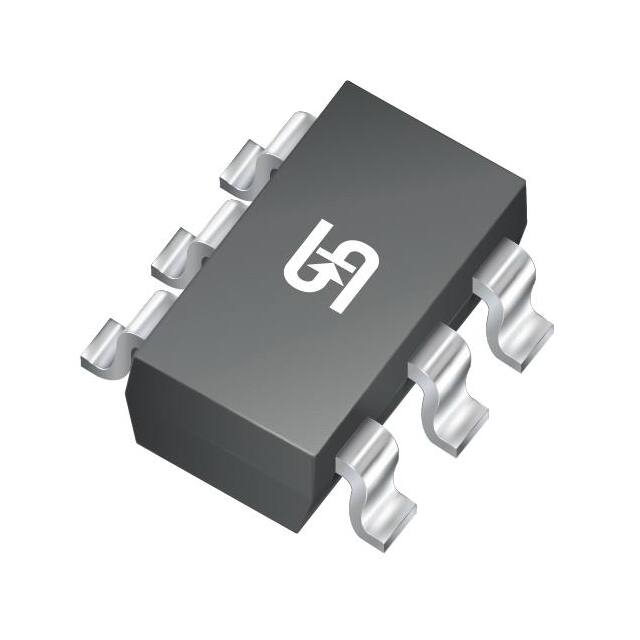

Name: TSM2N7002AKDCU6 RFG
Brand: Taiwan Semiconductor
SKU: TSM2N7002AKDCU6 RFG

Description:

60V, 0.22A, DUAL N-CHANNEL POWER

Stock on Request

TSM2N7002AKDCU6 RFG Description

Short technical summary and product information.

60V, 0.22A, DUAL N-CHANNEL POWER

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Taiwan Semiconductor
Configuration	2 N-Channel (Dual)
Current	220mA (Ta)
Drain to Source Voltage (Vdss)	60V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	0.91nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	30pF @ 30V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power	240mW (Ta)
Rds On (Max) @ Id, Vgs	2.5Ohm @ 220mA, 10V
Supplier Device Package	SOT-363
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.5V @ 250µA
