Mfr Part #:

TSM1NB60SCT A3G

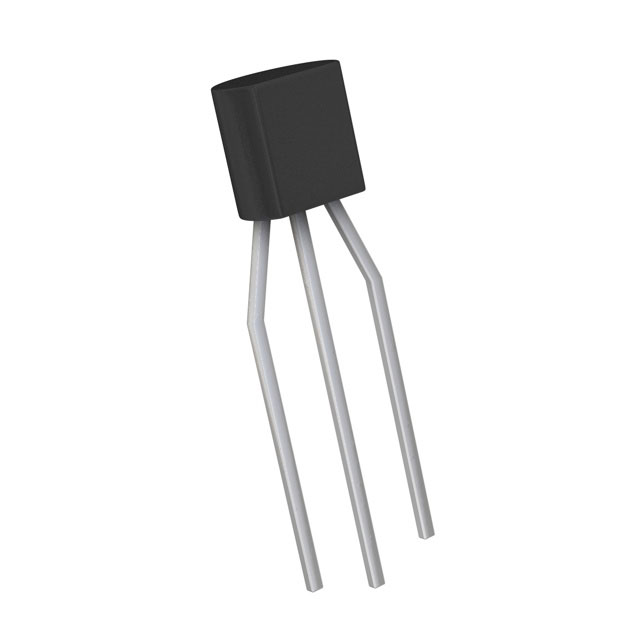

Name: TSM1NB60SCT A3G
Brand: Taiwan Semiconductor
SKU: TSM1NB60SCT A3G

Description:

MOSFET N-CH 600V 500MA TO92

Stock on Request

TSM1NB60SCT A3G Description

Short technical summary and product information.

MOSFET N-CH 600V 500MA TO92

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

TSM1NB60SCT B0G

Taiwan Semiconductor

MOSFET N-CH 600V 500MA TO92

TSM1NB60SCT A3

Taiwan Semiconductor

MOSFET N-CH 600V 500MA TO92

TSM1NB60SCT B0

Taiwan Semiconductor

MOSFET N-CH 600V 500MA TO92

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Taiwan Semiconductor
Current	500mA (Tc)
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	6.1 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	138 pF @ 25 V
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	2.5W (Tc)
Rds On (Max) @ Id, Vgs	10Ohm @ 250mA, 10V
Supplier Device Package	TO-92
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 250µA
