| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | 439 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

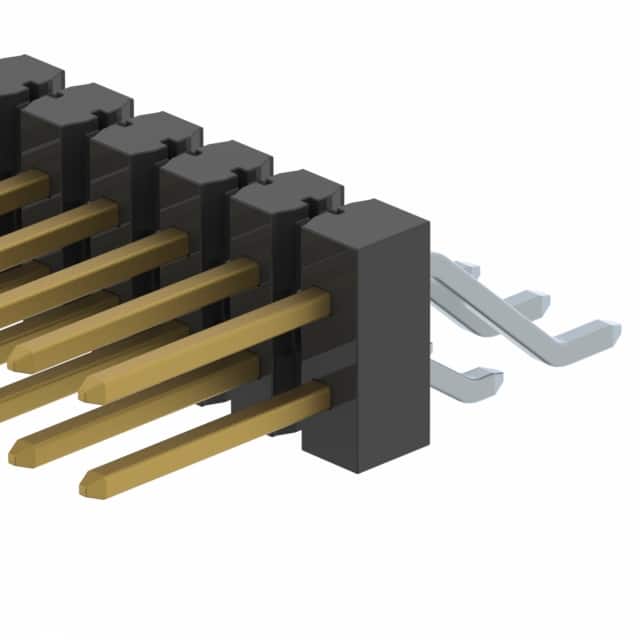

The Samtec TSM-120-02-L-DH is a 40-position, dual-row surface mount header with a 2.54mm pitch and right angle orientation. It features a black Liquid Crystal Polymer (LCP) insulator with UL94 V-0 flammability rating and phosphor bronze contacts with 10µ" gold plating on the post and matte tin on the tail. The unshrouded design supports board-to-board or cable-to-board applications.
Electrical ratings vary by mating connector: 4.7A per pin with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS (2 positions powered). The operating temperature range is -55°C to +105°C for tin finish versions; this -L option with gold post is rated for -55°C to +125°C per datasheet. The header is lead-free solderable and RoHS3 compliant (unverified).
Designed for surface mount soldering, the right angle orientation allows for low-profile connections parallel to the PCB. The 8.13mm post height provides adequate clearance for mating with various Samtec socket strips. This component is suitable for a wide range of interconnect applications requiring reliable, high-density connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.96 | $4.96 |
| 22+ | $4.61 | $4.61 |
| 55+ | $4.60 | $4.60 |
| 506+ | $3.61 | $3.61 |
| 1,001+ | $3.13 | $3.13 |
| 2,508+ | $2.66 | $2.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 40 positions arranged in 2 rows, all positions loaded.
The pitch is 2.54mm (0.100") with the same row spacing.
Current rating depends on mating connector: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS (2 positions powered).
Surface mount, right angle orientation.
-55°C to +125°C for gold finish (this -L option). For tin finish, it is -55°C to +105°C.
10µ" (0.25µm) gold on the post and matte tin on the tail, over 50µ" nickel underplating.
RoHS3 compliance is indicated but unverified. The datasheet confirms it is lead-free solderable.
