TSM-120-01-G-SV The Samtec TSM-120-01-G-SV is a 20-position, single-row surface mount header with 2.54mm pitch and gold-plated contacts. It features a black LCP insulator rated UL94 V-0 and is suitable for board-to-board or cable applications.
Mfr Part #:

TSM-120-01-G-SV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec TSM-120-01-G-SV is a 20-position, single-row surface mount header with 2.54mm pitch and gold-plated contacts. It features a black LCP insulator rated UL94 V-0 and is suitable for board-to-board or cable applications.
✓ Total Stock: 45 pcs
$ Price Range: $2.21 - $3.32

TSM-120-01-G-SV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-120-01-G-SV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-120-01-G-SV Description

Short technical summary and product information.

The Samtec TSM-120-01-G-SV is a 20-position, single-row surface mount header from the TSM series. It features unshrouded male pin contacts made of phosphor bronze with 10µin gold plating, providing reliable connectivity. The insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0, ensuring flame retardancy. The header has a 2.54mm pitch and a contact length of 5.84mm, making it compatible with standard 0.100" spacing. It is designed for surface mount soldering and can be used for board-to-board or cable-to-board interconnections. The operating temperature range is -55°C to 125°C with gold plating. Electrical ratings are dependent on the mating connector: current ratings up to 5.4A per pin and voltage ratings up to 495 VAC. The part is lead-free solderable and supports a wide range of applications.

TSM-120-01-G-SV Quick Information

Product Type: Header, Male Pins
Series: TSM

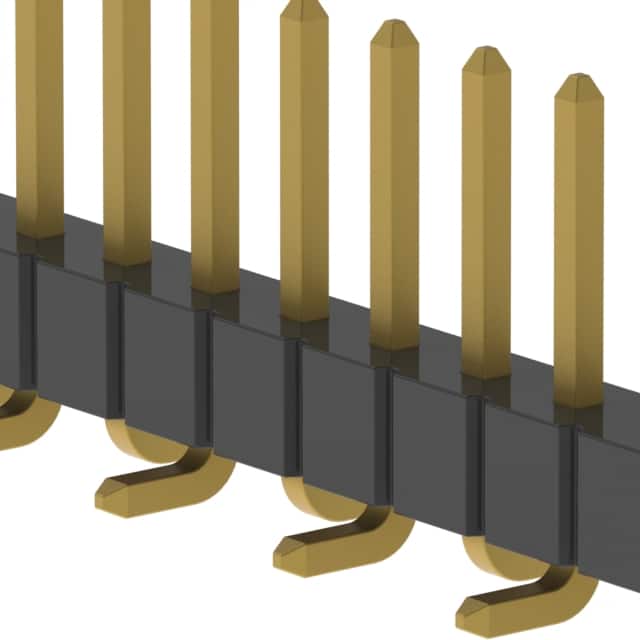

Canonical Name: Samtec TSM-120-01-G-SV - 20 Position Header, Male Pins, SMD, 2.54mm Pitch, Unshrouded
Subcategory: Male Pins

TSM-120-01-G-SV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

TSM-120-01-G-SV Estimated Pricing

Qty Low High
1+ $3.32 $3.32
55+ $3.26 $3.26
110+ $3.09 $3.09
506+ $2.62 $2.62
1,001+ $2.55 $2.55
2,002+ $2.26 $2.26
5,005+ $2.21 $2.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-120-01-G-SV Features

  • Surface mount with 2.54mm pitch.
  • Gold-plated phosphor bronze contacts.
  • Unshrouded header for board-to-board connections.
  • Operating temperature range -55°C to 125°C.
  • UL94 V-0 rated LCP insulator.

TSM-120-01-G-SV Applications

  • Used in board-to-board interconnections.
  • Suitable for cable-to-board applications.
  • Ideal for high-density packaging designs.

TSM-120-01-G-SV FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-120-01-G-SV have?

20 positions, all loaded, arranged in a single row.

What is the pitch of this header?

2.54mm (0.100 inches).

What is the current rating of the TSM-120-01-G-SV?

The current rating depends on the mating connector: up to 5.4A per pin with SSM, 5.0A with BCS, 4.7A with SSW, and 4.1A with HLE (2 positions powered).

What is the voltage rating of the TSM-120-01-G-SV?

The voltage rating depends on the mating connector: 495 VAC mated with BCS, 475 VAC mated with SSM.

What is the mounting type for this header?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-55°C to 125°C (with gold plating).
