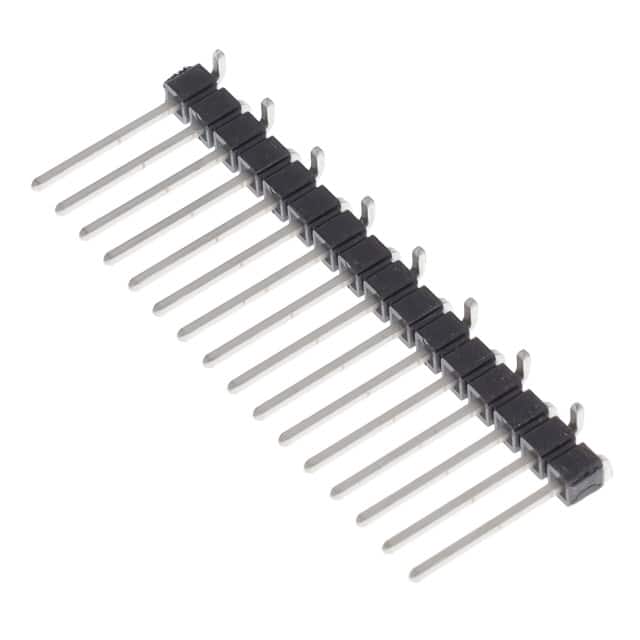

TSM-116-03-T-SV 16-position single row unshrouded male pin header with 2.54mm pitch, surface mount termination, and tin plated phosphor bronze contacts.
Mfr Part #:

TSM-116-03-T-SV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
16-position single row unshrouded male pin header with 2.54mm pitch, surface mount termination, and tin plated phosphor bronze contacts.
✓ Total Stock: 4 pcs
$ Price Range: $0.65 - $1.45

TSM-116-03-T-SV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-116-03-T-SV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-116-03-T-SV Description

Short technical summary and product information.

The Samtec TSM-116-03-T-SV is a 16-position single row unshrouded male pin header designed for board-to-board and cable-to-board applications. It features a 2.54mm (0.100") pitch and surface mount termination with solder tails. The tin-plated phosphor bronze contacts provide good conductivity and corrosion resistance, while the black liquid crystal polymer (LCP) insulation offers high mechanical strength and thermal stability with a UL94 V-0 flammability rating. The header operates over a temperature range of -55°C to +105°C and has a push-pull fastening type for easy mating. With a contact length of 10.67mm and insulation height of 2.54mm, the -03 lead style supports bottom mount and pass-through configurations. The component is RoHS compliant and has an MSL classification of 1 (unlimited). Its single-row design saves space on the PCB, making it suitable for compact electronic assemblies.

TSM-116-03-T-SV Quick Information

Product Type: Header (Male Pin)
Series: TSM
Canonical Name: Samtec TSM-116-03-T-SV 16-Position Single Row 2.54mm Pitch SMD Male Pin Header
Subcategory: Unshrouded Single Row Header

TSM-116-03-T-SV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSM-116-03-T-SV Estimated Pricing

Qty Low High
1+ $1.45 $1.45
56+ $1.28 $1.28
112+ $1.14 $1.14
504+ $1.01 $1.01
1,008+ $0.88 $0.88
2,002+ $0.75 $0.75
5,012+ $0.67 $0.67
10,010+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-116-03-T-SV Features

  • 16-position single row unshrouded header.
  • 2.54mm pitch for dense circuit designs.
  • Surface mount termination with solder tails.
  • Tin plated phosphor bronze contacts.
  • LCP insulation rated UL94 V-0.

TSM-116-03-T-SV Applications

  • Board-to-board stacking applications.
  • Cable-to-board interconnect solutions.
  • Bottom mount pass-through designs.
  • High-density packaging requiring SMD headers.

TSM-116-03-T-SV FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-116-03-T-SV header have?

16 positions in a single row.

What is the pitch of the TSM-116-03-T-SV header?

2.54mm (0.100 inches).

What is the mounting type for this header?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to +105°C.

What is the contact length (post height) of the -03 lead style?

10.67mm (0.420 inches).

What contact finish is applied?

Tin plating.

What insulation material is used and what is its flammability rating?

Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
