| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

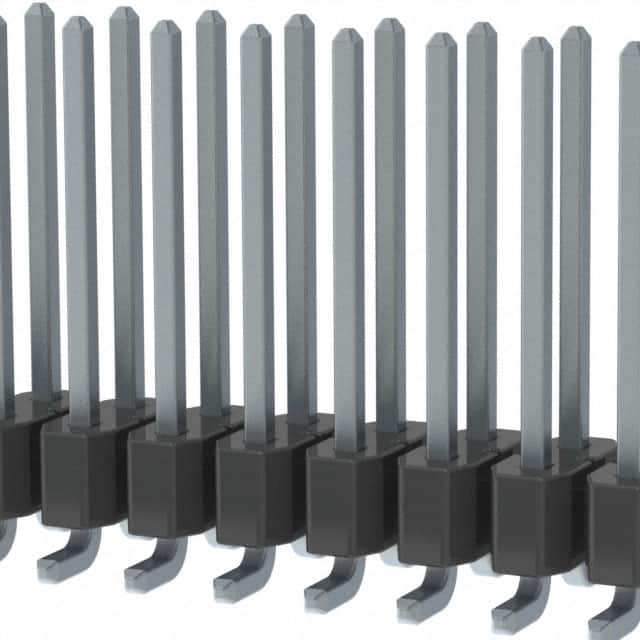

The Samtec TSM-110-03-T-DV-P-TR is a 20 position, 2 row, 2.54mm pitch surface mount unshrouded header from the TSM series. It features male pin contacts made of phosphor bronze with a tin finish, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0. The connector is designed for board-to-board or cable applications and supports a push-pull fastening type.
Electrical ratings vary depending on the mating connector: when mated with the BCS series, the voltage rating is 495 VAC and current rating is 5.0 A per pin; with the SSM series, voltage rating is 475 VAC and current rating is 5.4 A per pin; with the SSW series, current rating is 4.7 A per pin; with the HLE series, current rating is 4.1 A per pin. The operating temperature range is -55°C to +105°C.
The connector is surface mount with solder termination and is supplied in tape and reel packaging. It includes a pick and place feature for automated assembly. The part is lead-free solderable and has a moisture sensitivity level (MSL) of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
| 50+ | $2.04 | $2.04 |
| 100+ | $1.75 | $1.75 |
| 500+ | $1.67 | $1.67 |
| 1,000+ | $1.44 | $1.44 |
| 2,000+ | $1.32 | $1.32 |
| 5,000+ | $1.22 | $1.22 |
| 10,000+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 20 positions arranged in 2 rows.
The current rating per pin depends on the mating connector: 4.7 A with SSW, 5.4 A with SSM, 4.1 A with HLE, and 5.0 A with BCS.
The voltage rating is 495 VAC when mated with BCS and 475 VAC when mated with SSM.
It is a surface mount connector with solder termination.
The operating temperature range is -55°C to +105°C.
The insulator is made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
